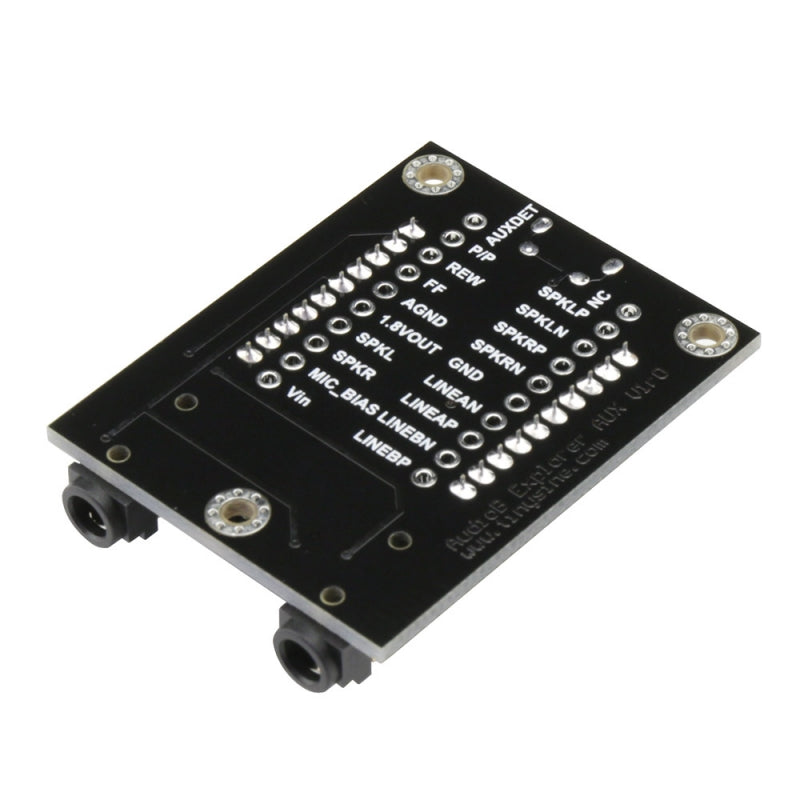

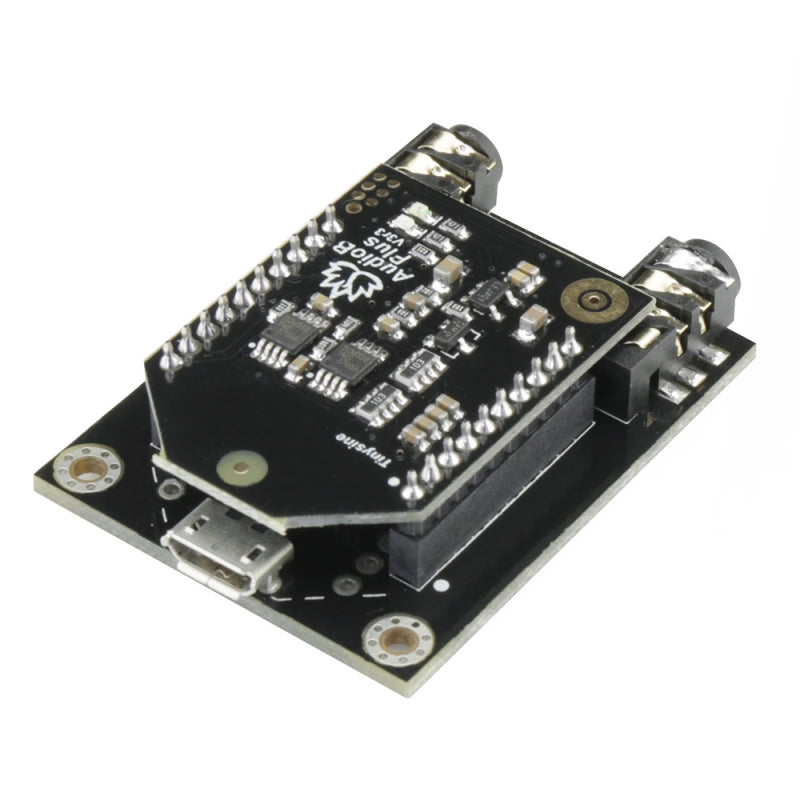

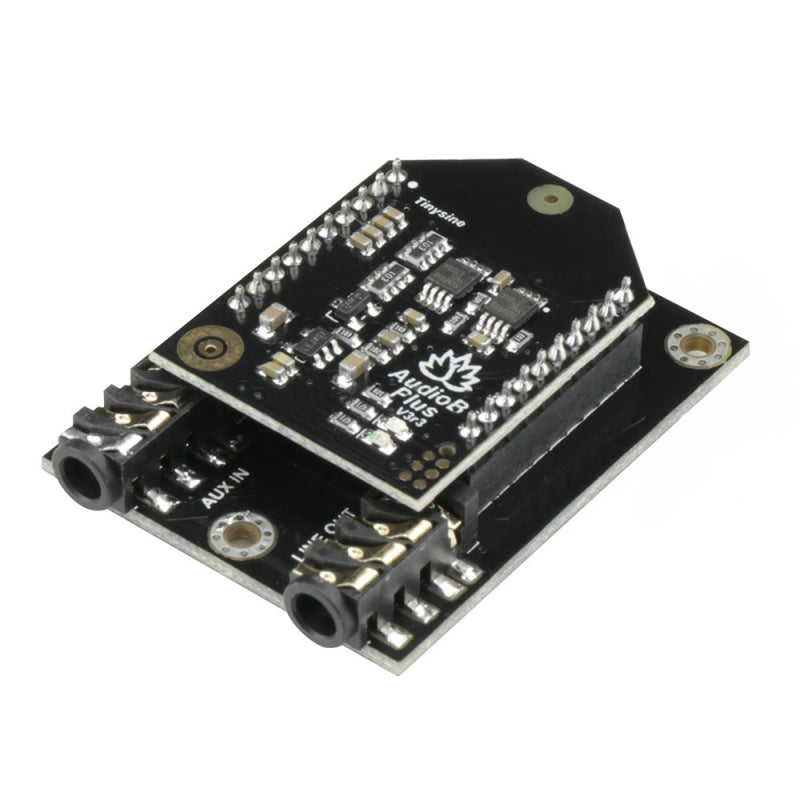

TSA6012 - Bluetooth Audio Receiver Board

This Bluetooth Music Receiver connects to the Line-In or Aux input on your home audio system. You can then stream audio from your Bluetooth enabled cell phone or mp3 player to your home audio system. Enjoy the convenience of having your music source in the palm of your hand and listening to it through your home stereo. it comes with a AudioB plus Bluetooth module.

Note：TSA6012 can auto detect the Aux in/Line in Audio input. Bluetooth Audio source has higher priority. When Bluetooth audio is paused or bluetooth is disconnected. TSA6012 will output the Aux in/Line in audio. If you need a bluetooth receiver that Aux in/Line in audio source has higher priority. Please use our TSA6010 receiver board

Features:

• Size: 42*32*11mm
• Bluetooth 4.0
• Stereo receive
• Effective transmission distance: 10-15m
• Micro USB female port for powering the receiver from any USB power source(5VDC)
• Compatible with all Bluetooth devices that support media audio, including iPhone

Documents:

• How to change the BT name
• TSA6012 Bluetooth module PSR file
