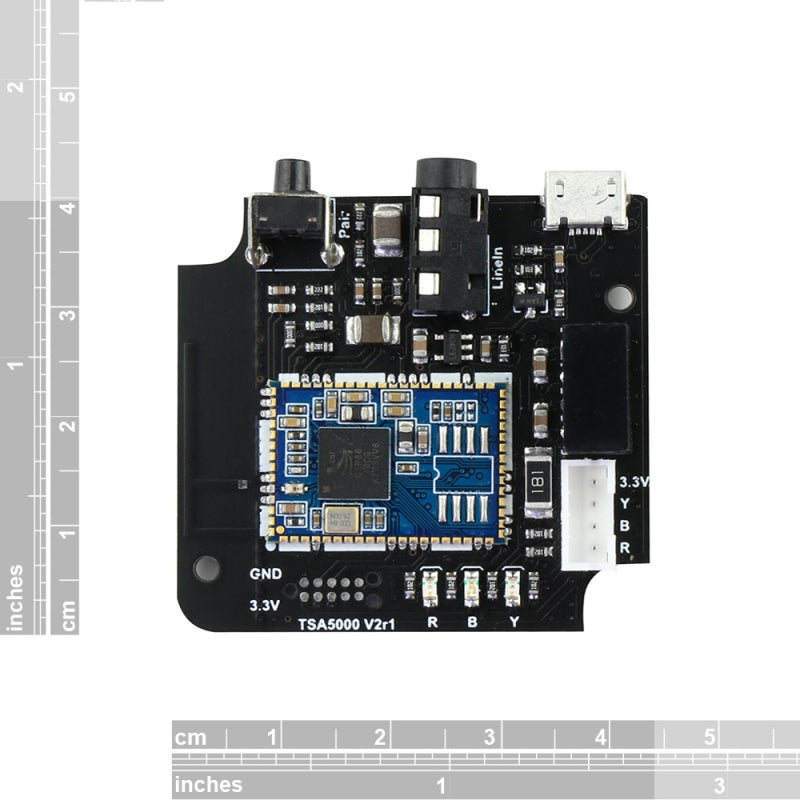

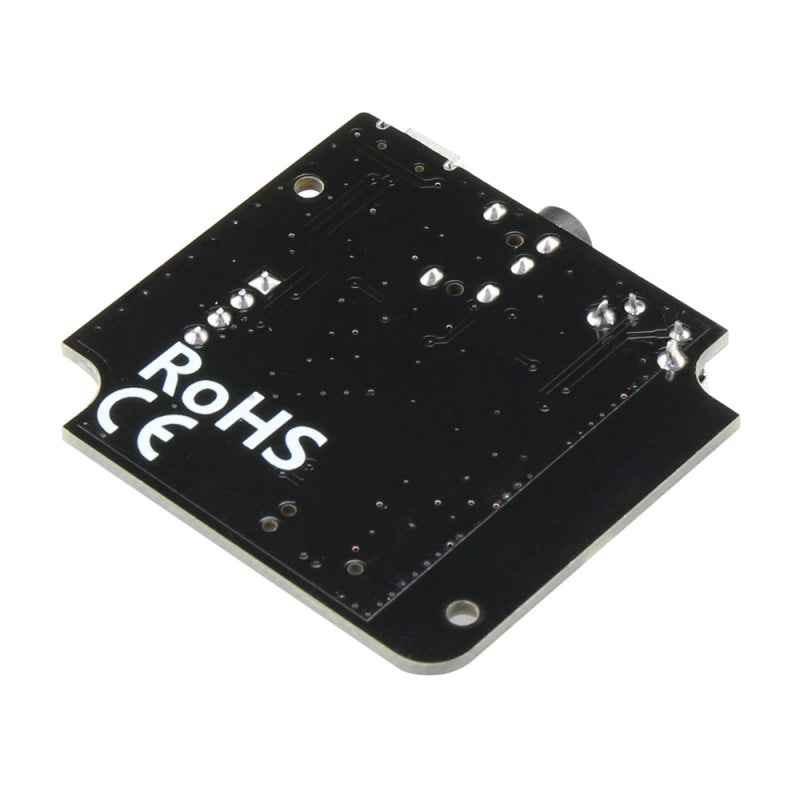

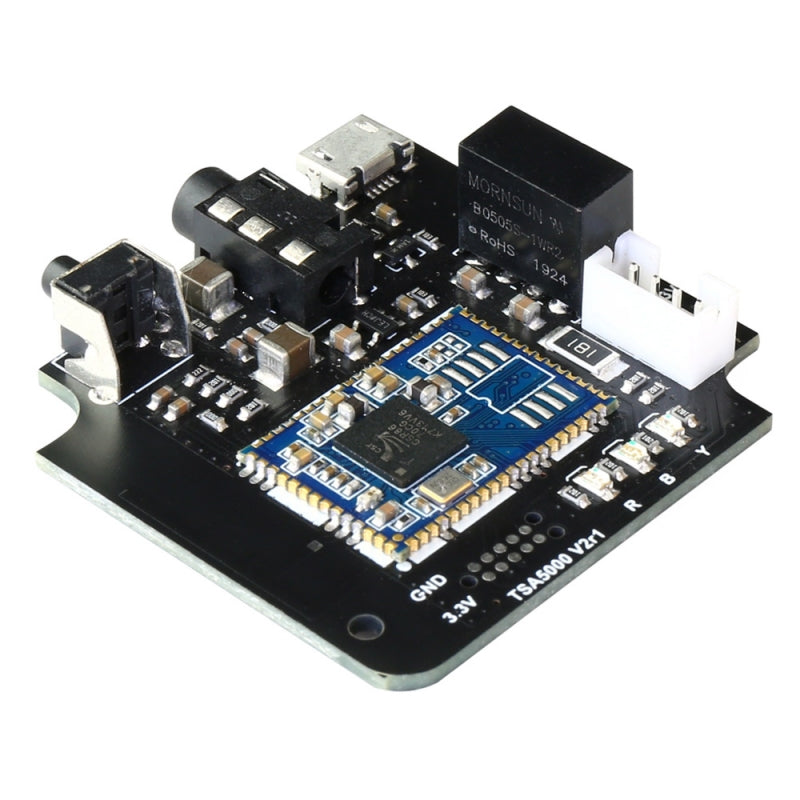

TSA5000 - Bluetooth 5.0 Audio Transmitter Board - Analog input

This is a compact size bluetooth 5.0 audio transmitter. Maybe your music player(TV, Computer, DVD, Radio ect..) does not have Bluetooth integrated, and you don't want to use cable to connect with our amplifier board, you can use this small device to let your audio player connect with your Bluetooth amplifier board wirelessly.

No need install any drivers. Just plug the 3.5mm stereo jack with your audio player 3.5mm audio connector. Power it on. Blue LED(B) slow blink. Red LED(R) ON. There is also have a connector on the board. You can connect external LEDs with this board.

How to pair?

1. Keep your TSA5000 bluetooth transmitter and bluetooth receiver device within 5m.
2. Turn on your bluetooth receiver device, keep it in pairing mode
3. Turn on your TSA5000 bluetooth transmitter, press the main button about 6-7 seconds, when blue LED light fast blink, now transmitter is in pairing mode and search receiver device automatically, finish pairing and connecting.
4. After connecting successfully. the blue LED will stay on.
5. Connect the audio cable with your music player. Now you can enjoy your music wirelessly.
6. Quick press the main button can MUTE the music. LED change to Yellow LED on.

Note: This Bluetooth audio transmitter can work with our Bluetooth audio amplifier boards perfectly.

Features:

• Bluetooth v5.0 specification support
• aptX, aptX Low Latency, SBC and AAC
• Bluetooth 5+EDR
• Bluetooth protocol: A2DP
• Output power: ClassII
• QTIL's proximity pairing and QTIL's proximity connection
• Dimensions: 44.5x44x12mm
• Weight: 10g

Documents:

• Transimitter firmware
