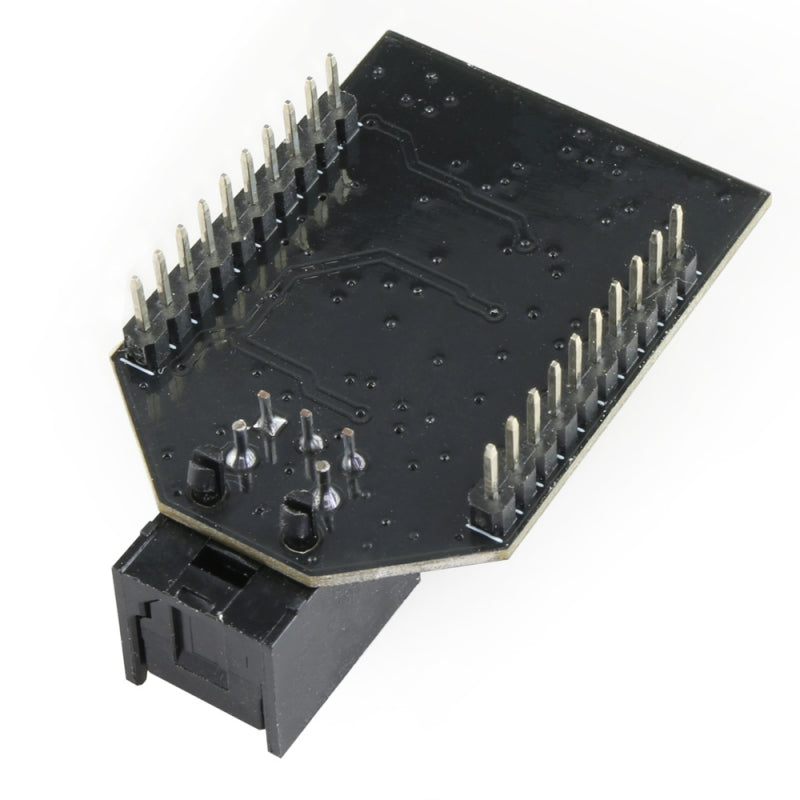

TOSLINKBee SPDIF to I2S Digital Audio Receiver Module

This TOSLINKBee module can convert SPDIF optical audio singal to I2S output. It has a TOSLINK receiver on the module and two 10 pin 2.0mm male pins. DIR9001PW converts the SPDIF signal to I2S, and CS8421 converts the audio sample rate. TOSLINKBee can automatically adapt to different sampling rates devices, from 16bit 44.1KHz to 24bit 96KHz. TOSLINKBee is a I2S slave device, It can work with all our DSP digital amplifiers. If you replace the AudioB Bluetooth module with this TOSLINKBee, the whole amplifier will become a new TOSLINK input amplifier board.

Features:

• Size: 40*35*20mm
• Biphase Input Signal Sampling Frequency (fs) Range: 28 kHz to 108 kHz.
• I2S: Sampling Rate: 44.1KHz to 96KHz
• I2S: Bit per Sample: 16 bit or 24bit
• Input voltage: 5VDC
