SPDIFBee SPDIF to I2S Digital Audio Receiver Module

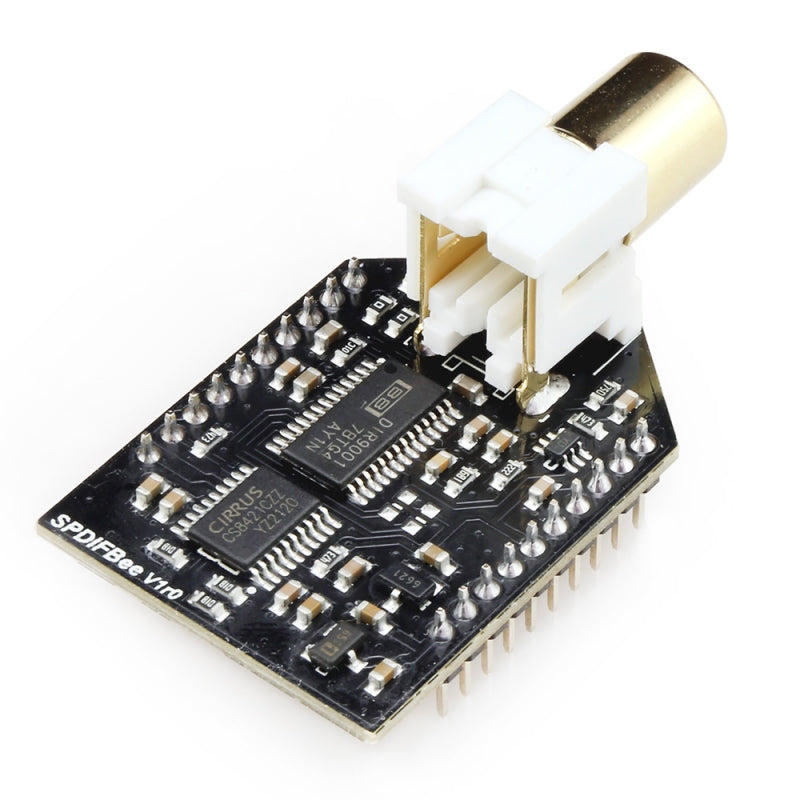

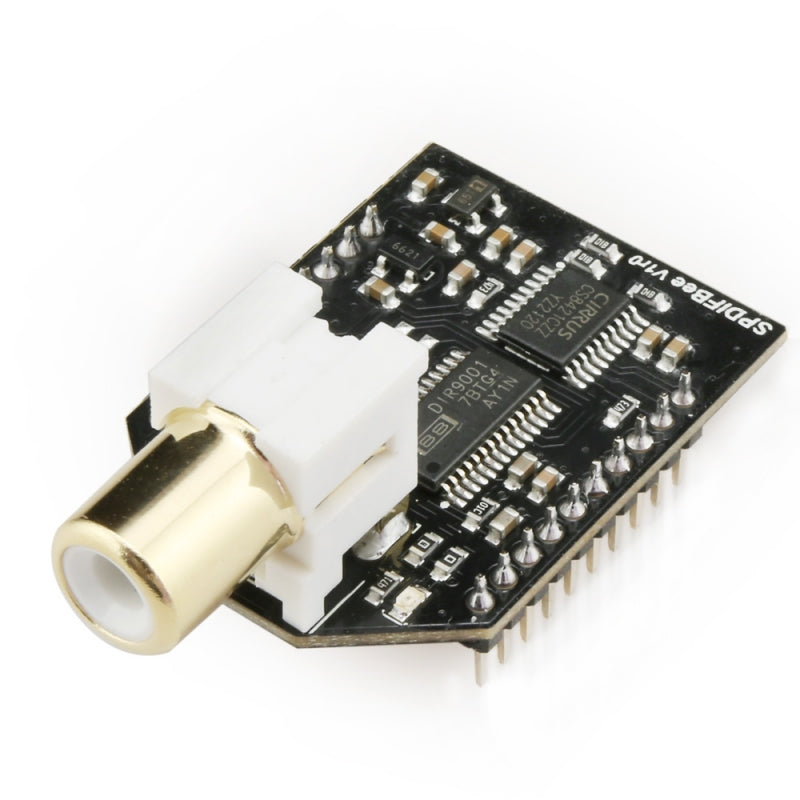

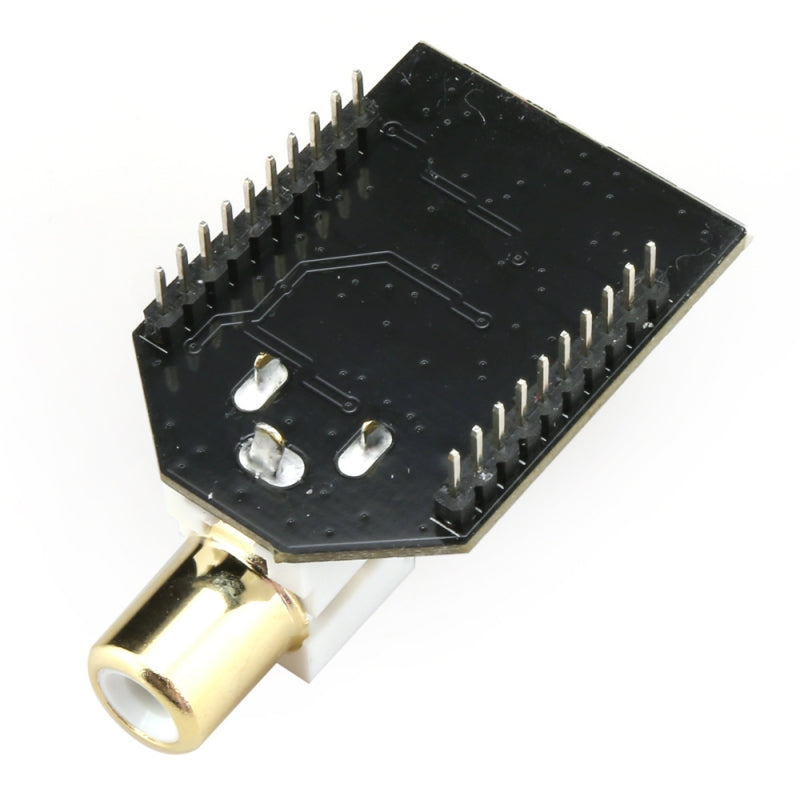

This SPDIFBee module can convert SPDIF audio singal to I2S output. It has a coaxial input connector on the module and two 10 pin 2.0mm male pins. DIR9001PW converts the SPDIF signal to I2S, and CS8421 converts the audio sample rate. SPDIFBee can automatically adapt to different sampling rates devices, from 16bit 44.1KHz to 24bit 96KHz. It can work with all our DSP digital amplifiers. If you replace the AudioB Bluetooth module with this SPDIFBee, the whole amplifier will become a new SPDIF input amplifier board.

Pins define

5V is input. 3.3v is output

Features:

• Size: 40*35*20mm
• Biphase Input Signal Sampling Frequency (fs) Range: 28 kHz to 108 kHz.
• I2S: Sampling Rate: 44.1KHz to 96KHz
• I2S: Bit per Sample: 16 bit or 24bit
• Input voltage: 5VDC
