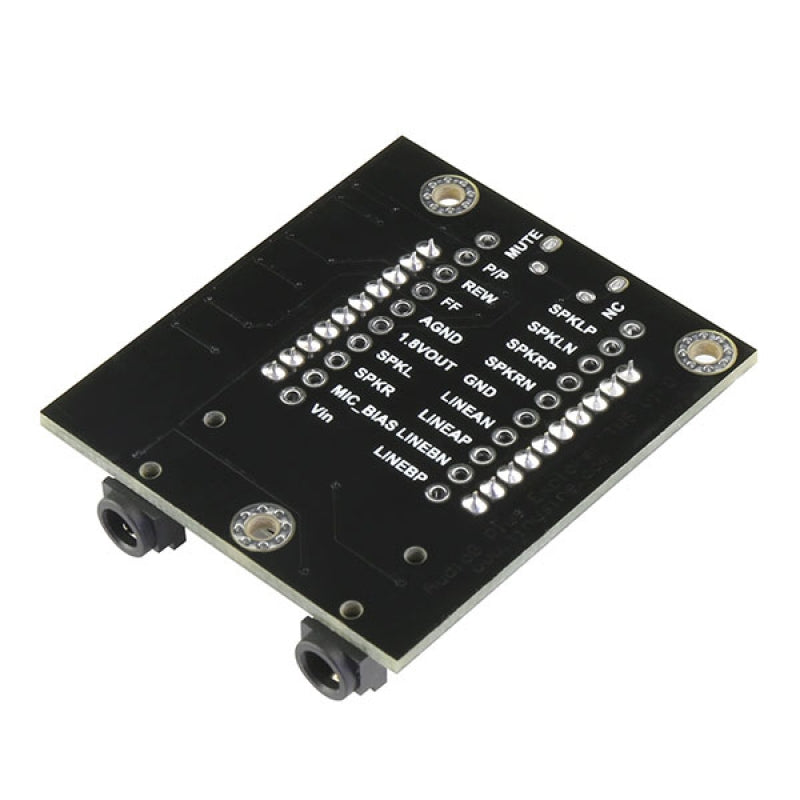

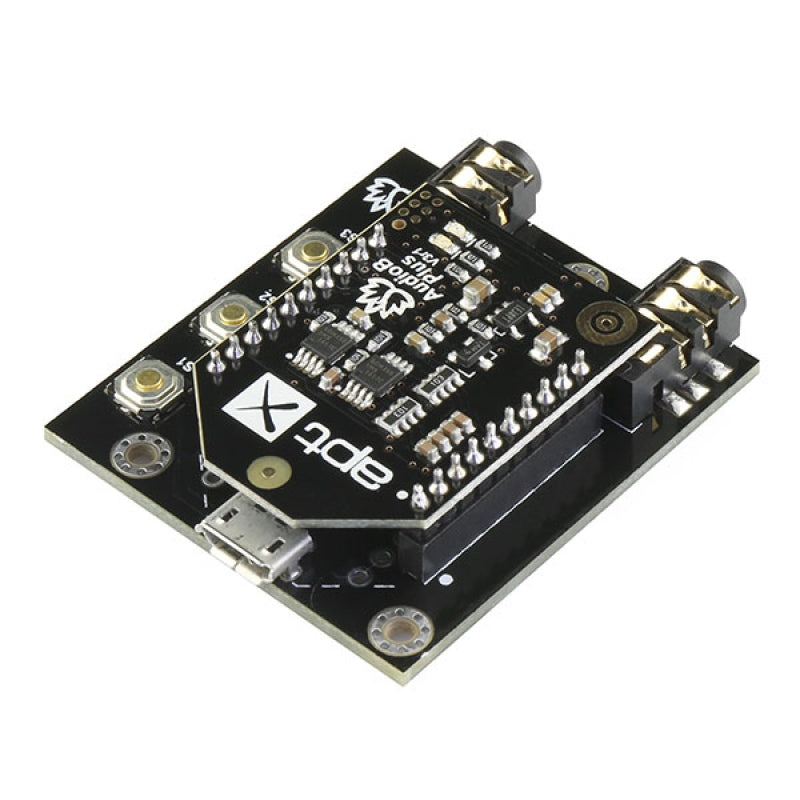

Bluetooth Audio Receiver Board(TWS/Apt-X)

This is a Bluetooth audio receiver which supports TWS function. This Bluetooth Music Receiver connects to the Line-In or Aux input on your home audio system. You can then stream audio from your Bluetooth enabled cell phone or mp3 player to your home audio system. Enjoy the convenience of having your music source in the palm of your hand and listening to it through your home stereo.

We have enabled the TWS function on this board. User can also use two of this board to build a wireless stereo speaker system. This receiver board default setting in TWS mode is mono channel output. People can stream sound to two separate Bluetooth speakers left channel to left speaker and right to right one without connecting them with any wires.  You can also set it to provide two separate stereo channels(Need a programmer).

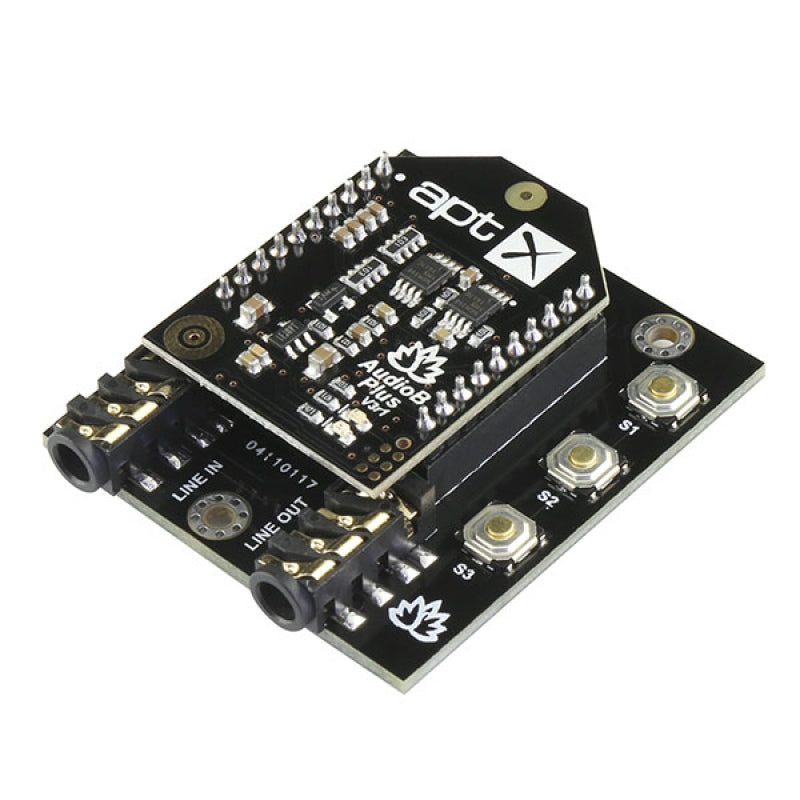

Note：When you use Bluetooth source in, you need to disconnect LINE IN input.

Two boards work on TWS mode

Features:

• Size: 42*37*11mm
• Bluetooth 5.0
• Apt-X supported
• TWS supported
• Stereo receive
• Effective transmission distance: 10-15m
• Mcro USB female port for powering the receiver from any USB power source(5VDC)
• Compatible with all Bluetooth devices that support media audio, including iPhone

Documents:

• How to Pair and Set the TWS Bluetooth Audio Receiver Board
• How to change the BT name
• Giga Control APP(Android)
