AudioB Bluetooth 5.0 Audio Module - TSA6179

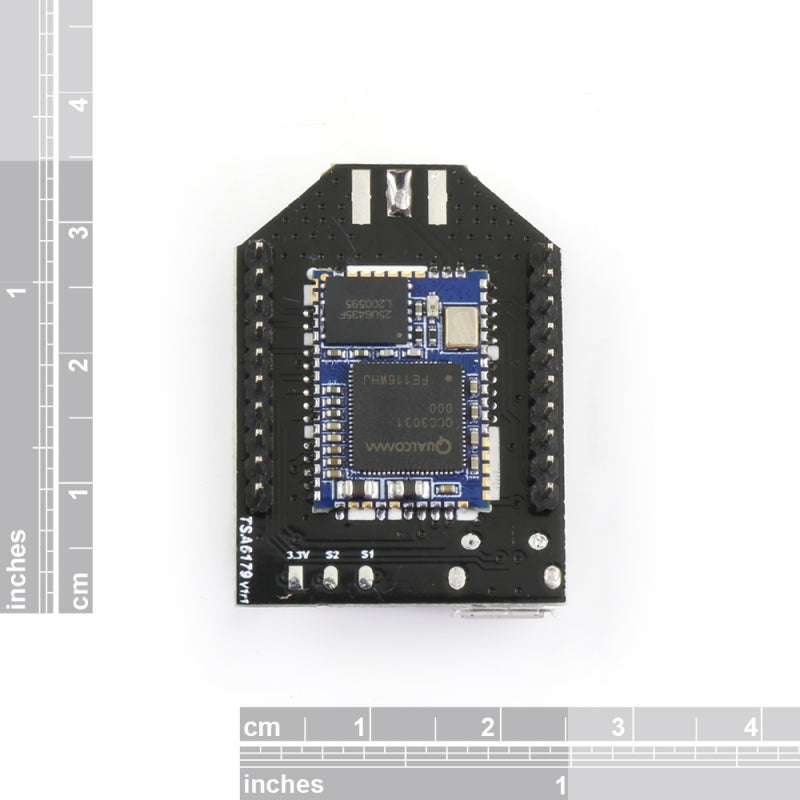

TSA6179 is a Bluetooth 5.0 stereo audio module, based on QCC3031. We breakout pins to 2x10 2mm space male pins. You can integrate it to your project easily. This module has a micro USB port, which means you can change the firmware by yourself, two buttons on the module can be configured to have different functions as you need.

Single-ended signal output

Single-ended signal output with headphone/small speakers

Differential signal output

TSA6179 provides 2 firmwares to choose: TWS mode and Party mode (Multipoint), you can also update the firmware via micro USB port.

• TWS mode : module works as a Bluetooth stereo audio receiver, and you can plug it into our most amplifiers.
• Party mode(Multipoint): you can have multiple modules paired and work together. This makes it possible to build a wireless surround sound system.

How to Use:

TWS mode

1. Power up the module and wait 1 second, module into pairing mode, Blue LED and Red LED flash alternately. (Voice: Pairing)
2. Now, Your smartphone will be able to find a new Bluetooth device whose name is "TSA6179". Connect it.
3. You can play the music now. If you only use one module as a normal receiver. You don't need do the following steps.

TWS connection

Master module:

1. Long press S1, set the master module into TWS master mode.

Slave module:

1. Power up the salve module, long press S2 to set module into TWS slave mode.
2. The master module will automatically search (30s) slave module. Both master and slave module will be connected. (Voice: Pairing successful)
3. Master module and slave module can play music now.

Party mode

1. Power up the module and double click S1, module into pairing mode (Voice: Pairing, LED: Blue LED fast blink).
2. Now, your smartphone will be able to find a new Bluetooth device whose name is "TSA6179". Connect it.
3. You can play the music now. If you only use one module as a normal audio receiver. You don't need do the following steps.

Multipoint connection

Master module:

1. Click S1, set the master module to transmitter mode (Voice: broadcast mode, LED: Red LED on).

Slave module:

1. Power up the slave module, click S2 to set module into receiver mode (Voice: broadcast audio enable, LED: Green LED on).
2. Double click S2 on the master module, double click S2 on the slave module. The master module will automatically search (30s) slave module.
3. Both master and slave module will be connected, then both master module and slave module can play music now.
4. If there is a new board to join as a slave module, just click S2 to set new module to receiver mode then double click S2 on the master module.
5. If a slave board want to quit, click S1 to switch that module to transmitter mode or normal mode.

Features:

• Bluetooth 5.0
• Multipoint connection
• Qualcomm cVc audio technology
• Qualcomm TrueWireless Technology
• Stereo receive
• Effective transmission distance: 50-100m

Documents:

• How to change the BT name
• How to change stereo to mono
• Bluesuite3.3
• ADK_QCC512X_QCC302X_WIN_6.4.2.26
• Firmware(TWS)
• Firmware(Party mode)
•
