2 x 8 Watt Class D Bluetooth Audio Amplifier Board - TSA3110B(Apt-X)
2 x 8 Watt Class D Bluetooth Audio Amplifier Board - TSA3110B(Apt-X)
Couldn't load pickup availability

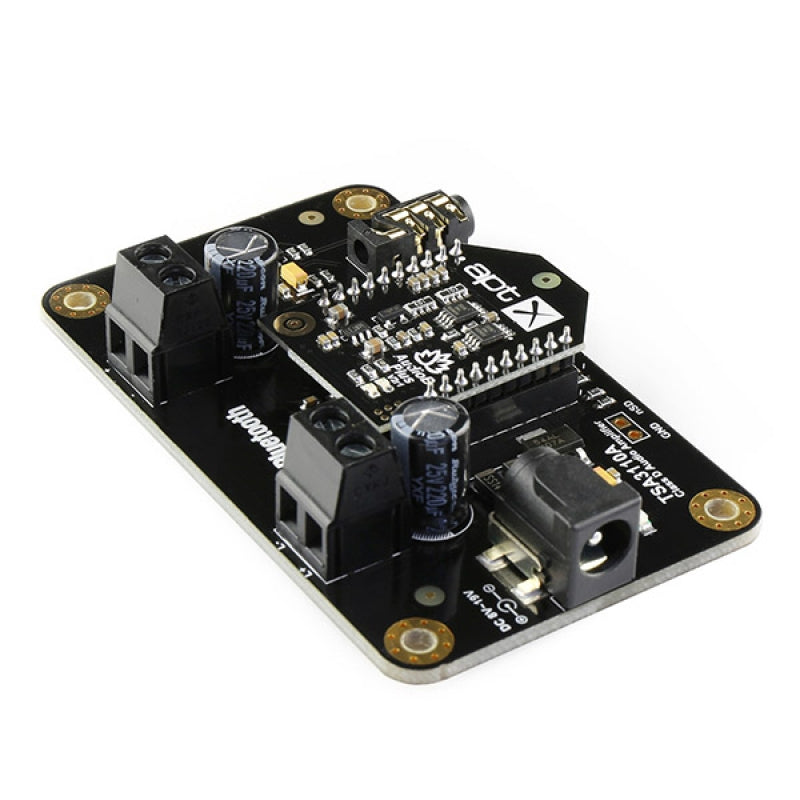

This is a 2x8W audio amplifier board with a new AudioB plus Bluetooth module that supports Apt-X. It has perfect class-D architecture(Based on TPA3110D2) and every channel has 8W power output. This board can be powered by any DC8V-16V power supply, it can be used to drive any 4Ω or 8Ω passive speakers.
It's perfect for your Hi-Fi application, the audio source can be cable input(3.5mm stereo) or Bluetooth. Let your smartphone paired with this board, play a music. So easy!
Note：When you insert the cable plug, Bluetooth connection will automatically disconnect.
Specification:
TA = 20℃, fIN = 1 kHz sine wave, RL = 4Ω. (Unless otherwise stated)
|
Parameter |
Condition |
Min |
Typ |
Max |
|
Supply Voltage (V) |
- |
8 |
12 |
16 |
|
Quiescent Current (mA) |
SD = 2V, No load, Vcc = 12V |
- |
20 |
35 |
|
Input Sensitivity (V) |
Gain = 26dB |
- |
0.283 |
- |
|
Input Impedance (Kohm) |
- |
- |
30 |
- |
|
Gain (dB) |
- |
|
26 |
|
|
Output Power (W rms) |
THD+N = 10%, Vcc = 12V |
- |
8 |
- |
|
Efficiency (%) |
Vcc = 12V, RL = 8Ω, PO = 5W |
- |
86 |
- |
|
Minimum Load (ohm) |
- |
3.2 |
4 |
- |
|
Frequency Response (Hz) |
±3dB |
20 |
- |
22k |
|
Operating Temperature (℃) |
- |
-40 |
20 |
65 |
Features:
- Size: 4.8cm x 8cm
- aptX, aptX Low Latency, SBC and AAC
- External mute control port
- Working voltage: DC8V-16V
- Over/under voltage protection
- Over current protection
- Over temperature protection
- Bluetooth 5.0
Applications:
- Personal computer
- Desktop amplifier
- Microphone preamplifier
- Home DIY
- Vending machine,Lifts
- Interactive kiosks
