2 x 8 Watt Bluetooth Audio Amplifier Kit - TSA2210
2 x 8 Watt Bluetooth Audio Amplifier Kit - TSA2210
This kit is designed for factory or DIY user. A volume knob, Weatherproof panel mount LED and a TSA2210 amplifier board are included in this kit. People can adjust the bluetooth audio volume either on the smartphone or turning this real knob. You can power this kit with a 12VDC power supply or a 12V batttery. The LED can indicate the ON/OFF state and the battery voltage state. Users can install this kit in a box easily to make their own audio amplifier products.

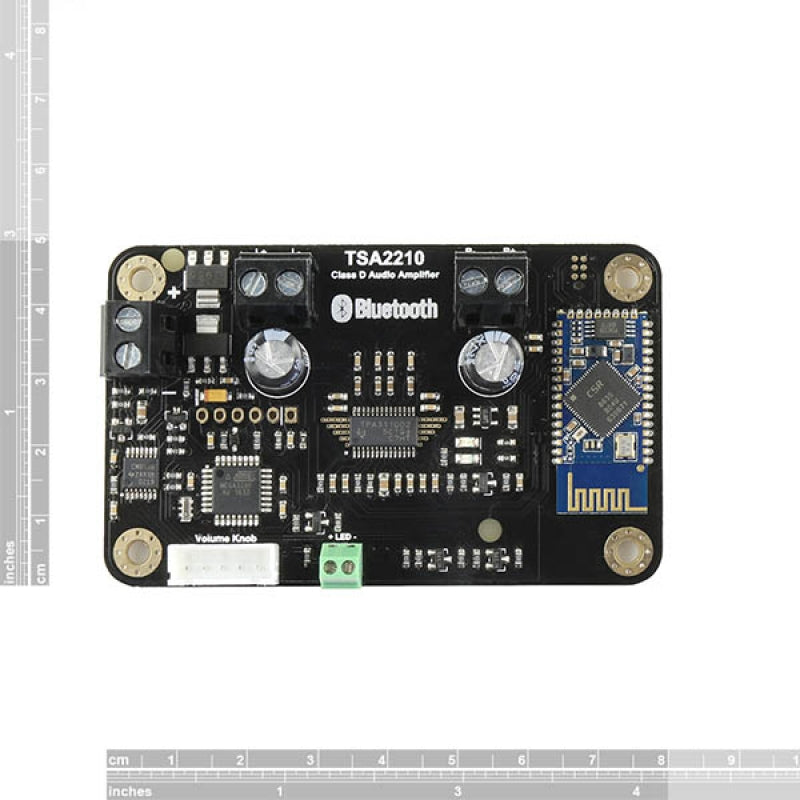

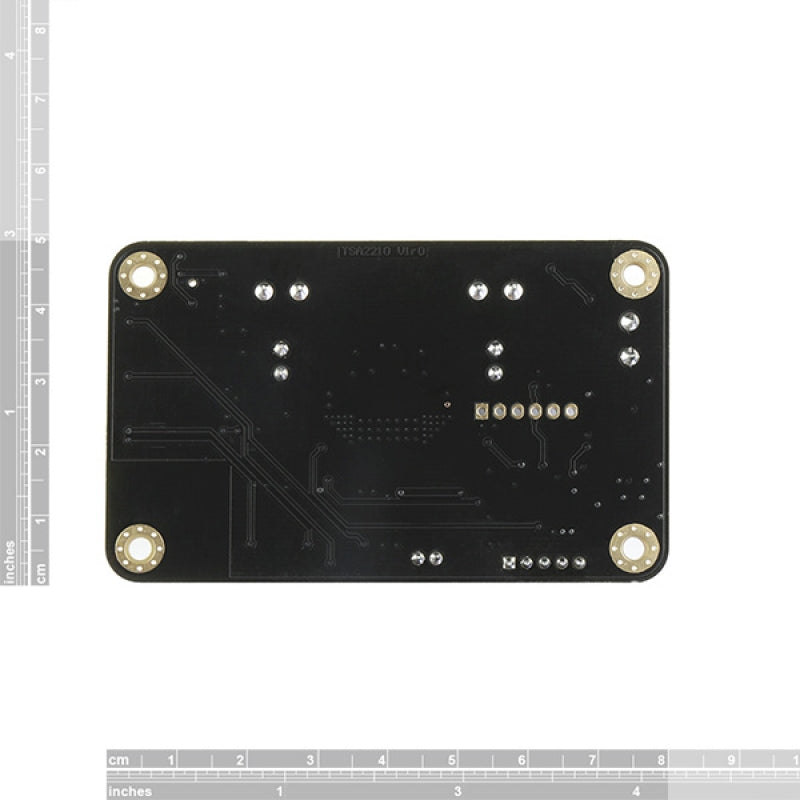

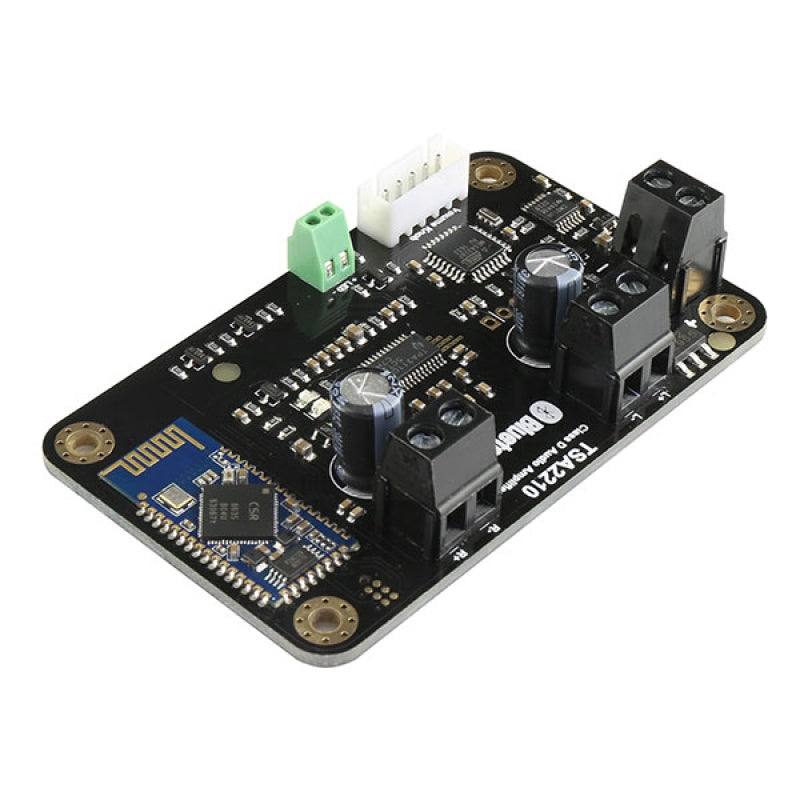

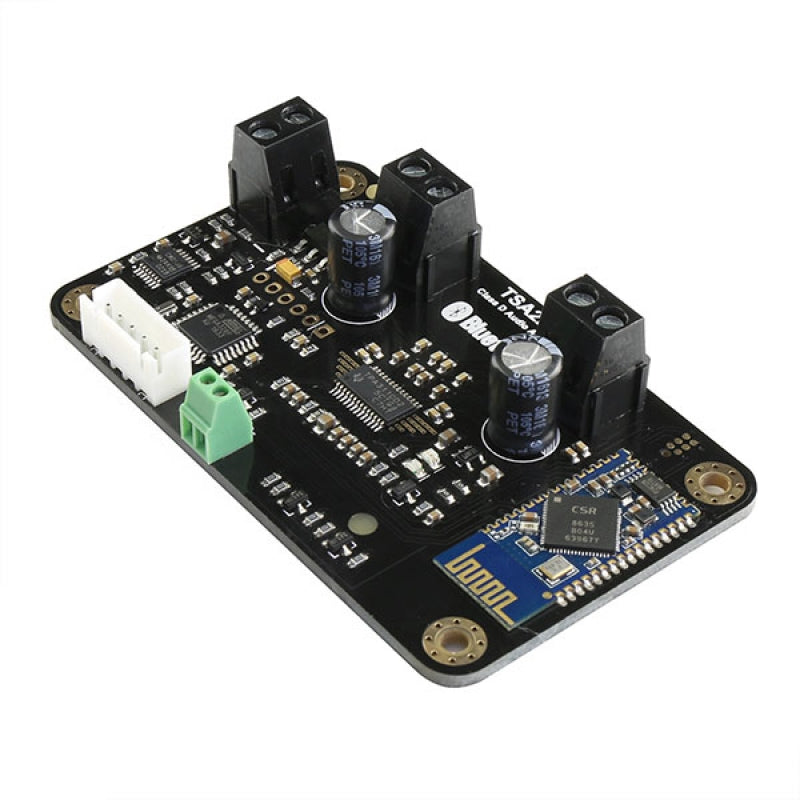

TSA2210 is a 2x8W class D audio amplifier board with Bluetooth 4.0 integrated. It has perfect class-D architecture(Based on TPA3110D2) and every channel has 8W power output. This board can be powered by any DC8V-16V power supply. It can be used to drive any 4Ω or 8Ω passive speakers. The bluetooth audio volume control circuit is also integrated on this board. Turn the knob clockwise will increase volume, Turn the knob counterclockwise will decrease volume. Click the knob will turn ON/OFF the amplifier.
It's perfect for your Hi-Fi application. You may wish to pair with a mobile phone or a computer (etc). Power the amplifier board. Use your phone or PC (etc) to search for a new Bluetooth device. The module will appear as "BT Speaker"( You can also change the BT name if you have a programmer). You don't need a PIN, pair it and then you can play music.
Note: When the power voltage <10.3V, the amplifier board will auto turn off and goes into standby mode. If you click the knob to turn it on again, the LED will blink 3 seconds and turn off again.
Specification:
TA = 20℃, fIN = 1 kHz sine wave, RL = 4Ω. (Unless otherwise stated)
Parameter |
Condition |
Min |
Typ |
Max |
Supply Voltage (V) |
- |
8 |
12 |
16 |
Quiescent Current (mA) |
SD = 2V, No load, Vcc = 12V |
- |
20 |
35 |
Input Sensitivity (V) |
Gain = 26dB |
- |
0.283 |
- |
Input Impedance (Kohm) |
- |
- |
30 |
- |
Gain (dB) |
- |
|
26 |
|
Output Power (W rms) |
THD+N = 10%, Vcc = 12V |
- |
8 |
- |
Efficiency (%) |
Vcc = 12V, RL = 8Ω, PO = 5W |
- |
86 |
- |
Minimum Load (ohm) |
- |
3.2 |
4 |
- |
Frequency Response (Hz) |
±3dB |
20 |
- |
22k |
Operating Temperature (℃) |
- |
-40 |
20 |
65 |
Kit contents:
- TSA2210 Bluetooth audio amplifier board x 1
- Volume knob x 1
- Weatherproof panel mount LED (Green) x 1
- Ribbon cable x 1
Features:
- Size: 4.8cm x 8cm
- Bluetooth audio volume control
- Working voltage: DC10.3V-16V
- Standby current: 0.12mA@12VDC
- Over/under voltage protection
- Over current protection
- Over temperature protection
- Bluetooth 4.0
Applications:
- Personal computer
- Desktop amplifier
- Microphone preamplifier
- Home DIY
- Vending machine,Lifts
- Interactive kiosks
