2 x 50 Watt Class D Audio Amplifier - TSA3611
2 x 50 Watt Class D Audio Amplifier - TSA3611
Couldn't load pickup availability

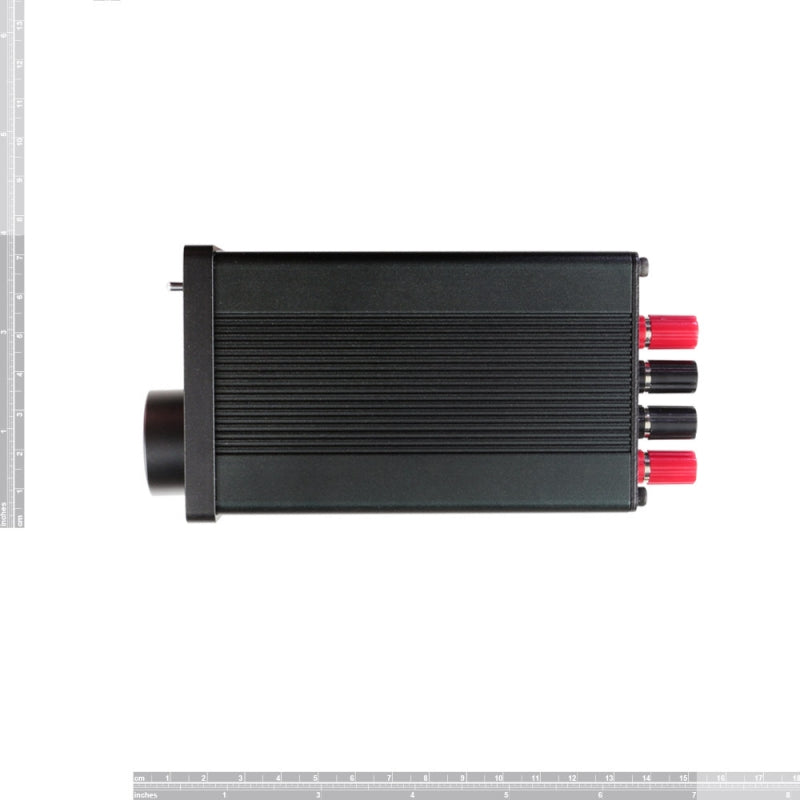

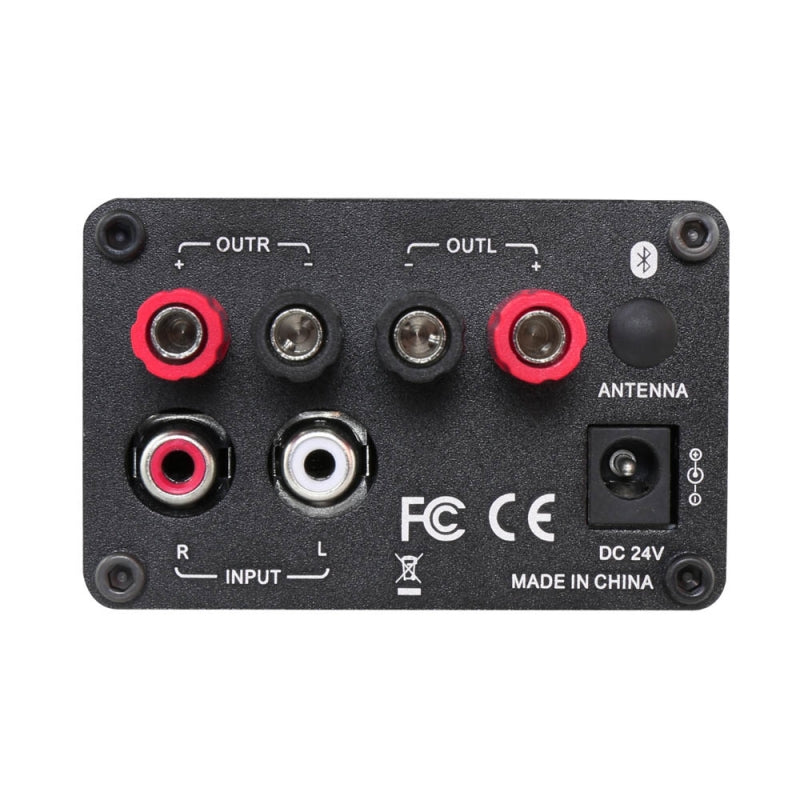

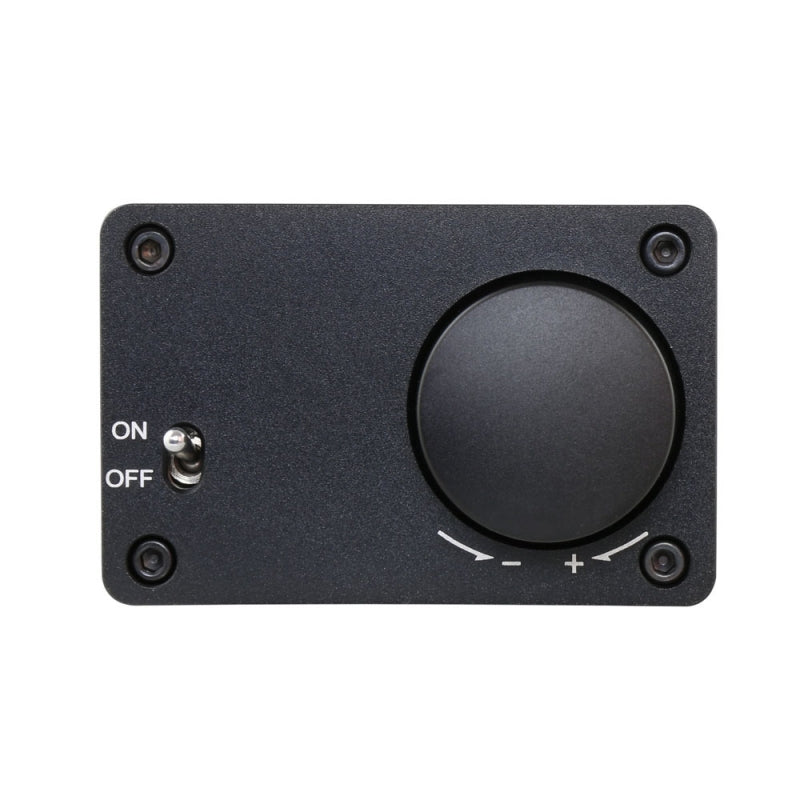

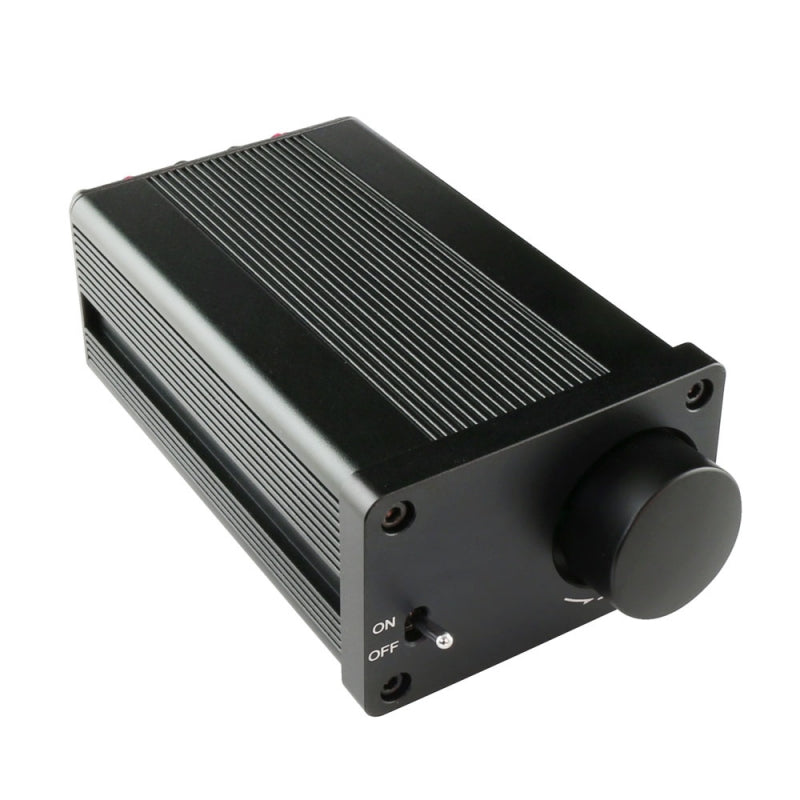

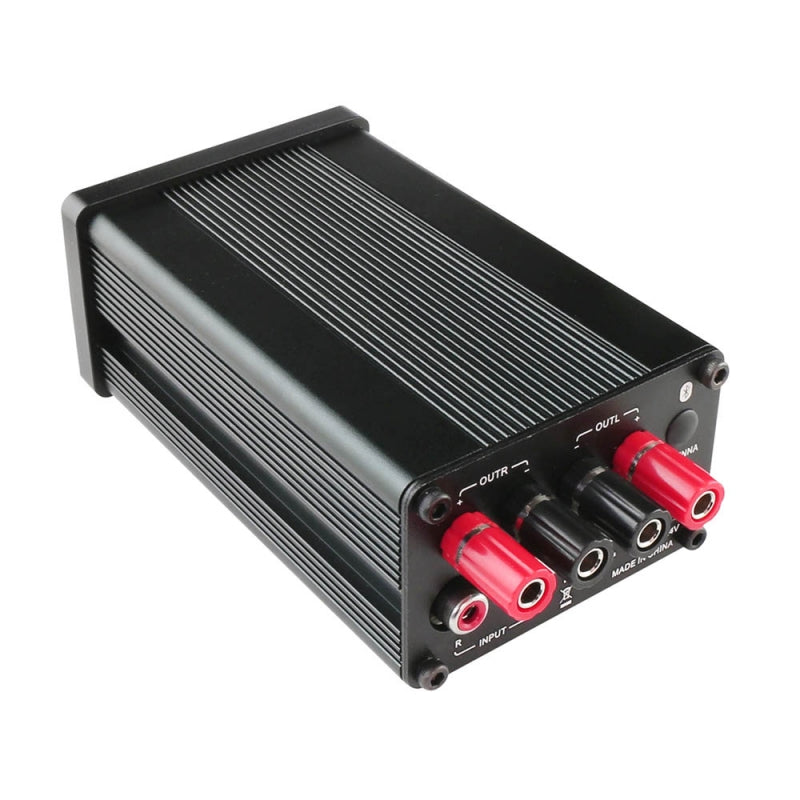

This is a 2x50W audio amplifier which integrates TI’s TPA3116 as the driver. It has perfect class-D architecture and each channel has 50W power output. This board can be powered by any DC12V-24V power supply. It can be used to drive any 4Ω or 8Ω passive speakers. There are a ON/OFF switch and a volume knob on the front panel. It's very easy to use.
Specification:
TA = 20℃, fIN = 1 kHz sine wave, RL = 4Ω. (Unless otherwise stated)
|
Parameter |
Condition |
Min |
Typ |
Max |
|
Supply Voltage (VDC) |
- |
12 |
21 | 24 |
|
Idle Power |
SD Floating |
- |
1.3W |
2.5W |
|
Standby Power |
SD Connected to GND |
- |
0.1W |
0.3W |
|
Maximum Current |
100W @ 4Ohm |
- |
5.29A |
- |
| Efficiency |
50W @ 4Ohm |
87% | - | 92% |
|
Minimum Load Impedance |
3.2Ω |
|||
|
Switching Frequency |
SD Floating |
- | 394KHZ | - |
| Gain | 24dB | 25dB | 26dB | |
|
Input Sensitivity(RMS) |
@4Ω, 50W, 1KHz |
- | 808mV | - |
|
Input Impedance |
- | - | 22KΩ | - |
|
Output Power |
@4Ω THD+N 1% |
- | 36W | - |
|
@4Ω THD+N 10% |
- | 50W | - | |
|
Bandwidth @ ±3dB |
@4Ω |
20Hz |
- | 20KHz |
|
THD |
@4Ω, 1W, 1KHz |
- |
0.0299% |
- |
|
@4Ω, 10W, 1KHz |
- |
0.073% |
- |
Features:
- Dimension: 16cm x 7.5cm x 4.8cm
- Weight: 420g
- Working voltage: DC12V-24V
- Over temperature protection
- Over current protection
Applications:
- Personal computer
- Desktop amplifier
- MP3, Video CD output Amplification
- Home Theater
- Powered DVD Systems
