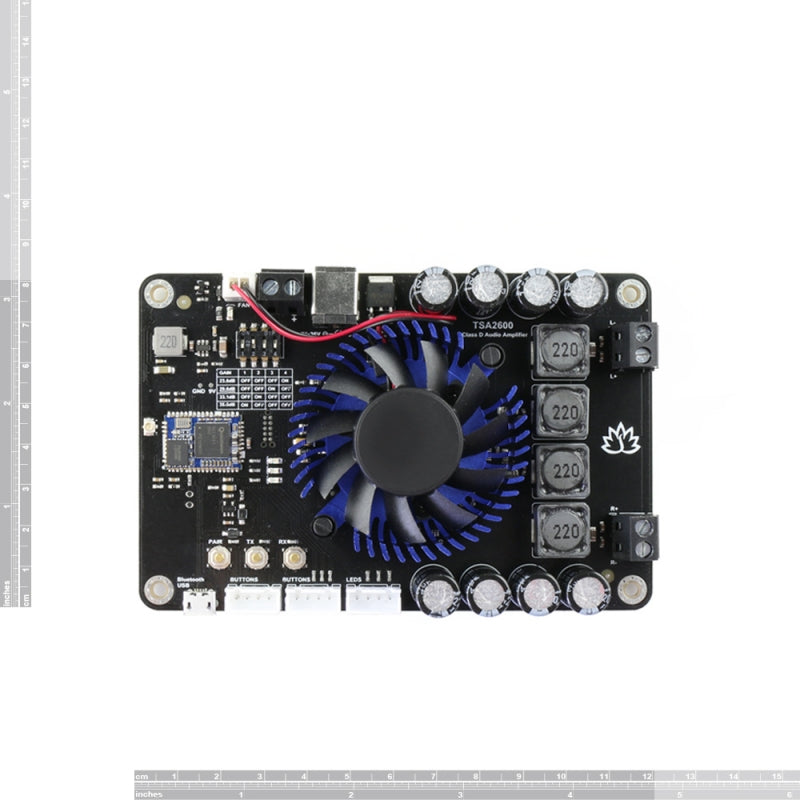

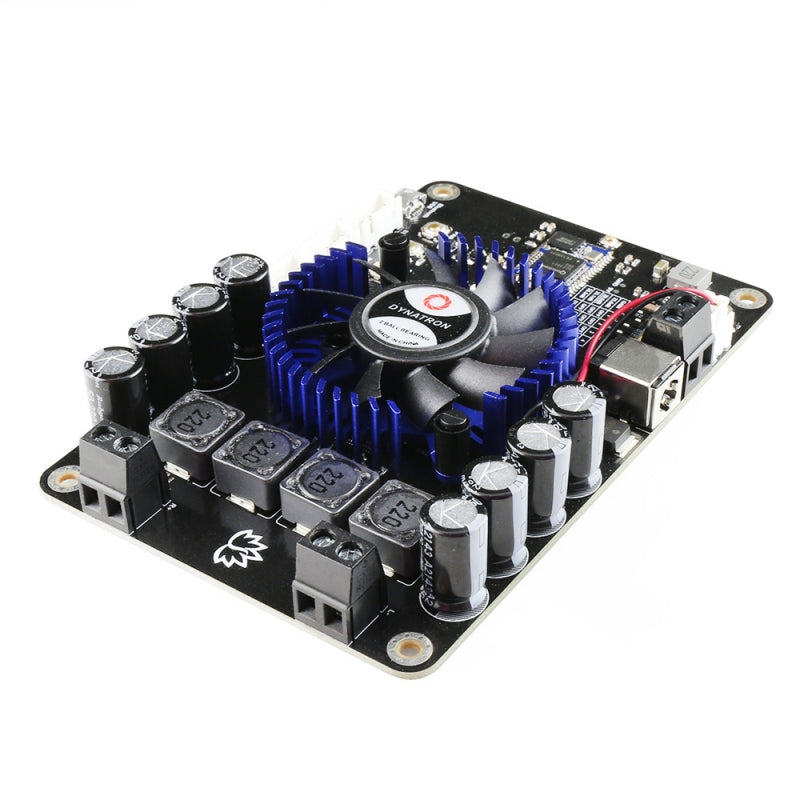

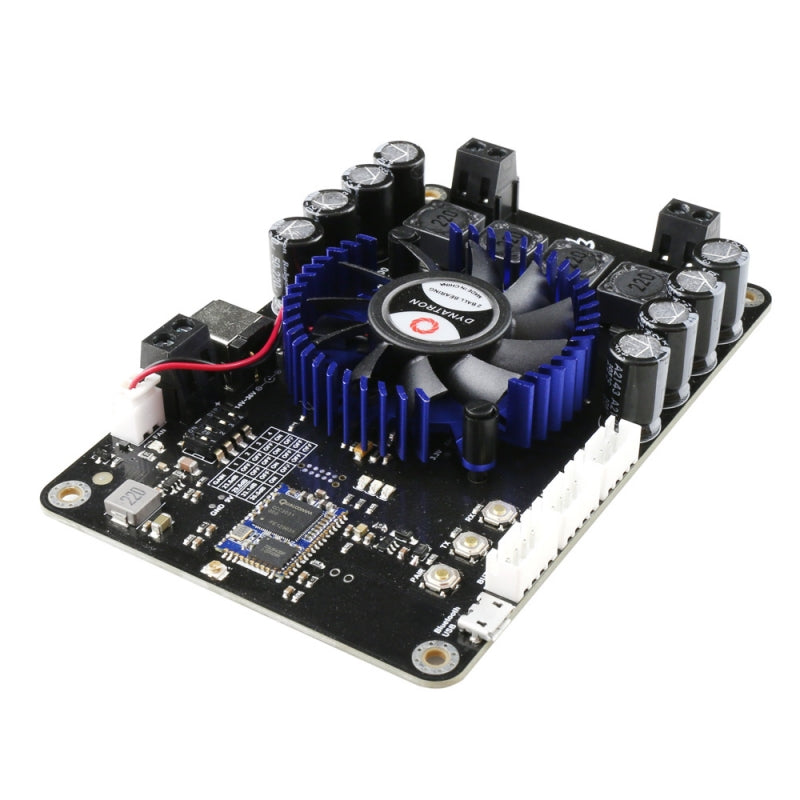

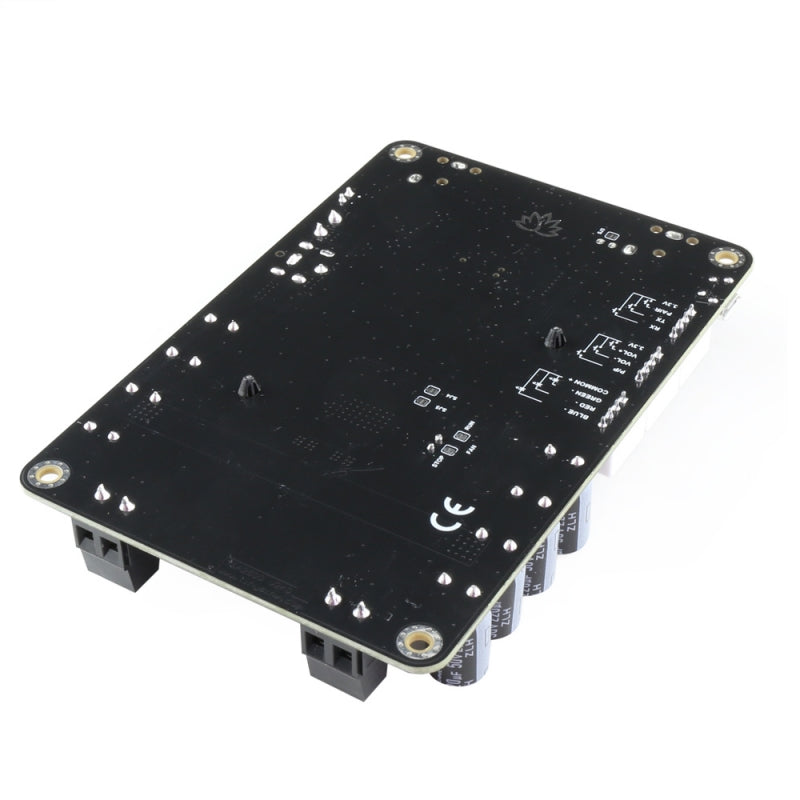

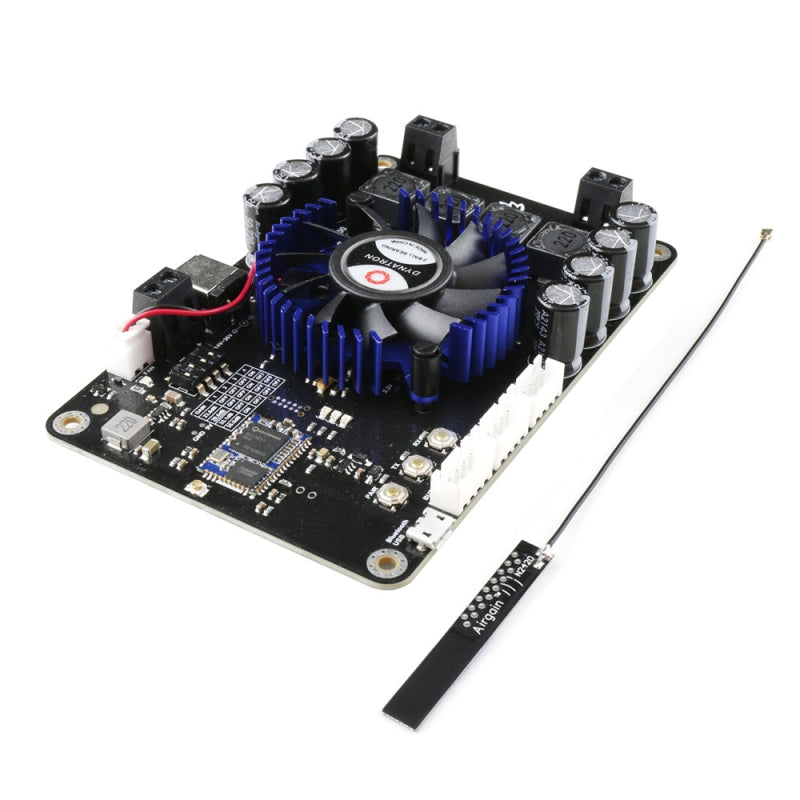

2 x 160W Bluetooth 5.0 Multipoint Audio Amplifier Board - TSA2600

2 x 160W Bluetooth 5.0 Multipoint Audio Amplifier Board - TSA2600

Regular price $52.50 USD
Regular price Sale price $52.50 USD
Sale Sold out
Shipping calculated at checkout.

TSA2600 is a 2x160W Stereo Bluetooth 5 multipoint audio amplifier board. It has perfect class-D architecture(Based on TDA7498E) and each channel has maximum 160W power output. Both of channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC14V-36V power supply. it can be used to drive any 4Ω or 8Ω passive speakers.

The highlight point is BT 5 integrated. You can have many TSA2600 boards paired and work together. TSA2600 can remember the pairing info. You don't need to pair them each time after you turn the amplifier board on. This makes it possible to build a wireless surround sound system by using the TSA2600.

If you only use one TSA2600, it can work as a common Bluetooth amplifier board. Power the amplifier board. Double click PAIR button to set the board into Pairing mode. Use your phone or PC (etc) to search for a new Bluetooth device. The module will appears as "TSA2600". You don't need a PIN, pair it and then you can play music.

Pairing buttons:

  • PAIR - Double click into pairing mode.
  • TX - Click into transimitter mode.
  • RX - Click into receiver mode.

External Pairing buttons Port:  Connect external buttons to control the PAIR/TX/RX.

Play,Volume control Port: Connect external buttons to control the music Play/Pause, Volume+, Volume-.



One board works like a normal Bluetooth amplifier





Multiple boards work together



How to use:

Master board:

  1. Power up the TSA2600, Blue LED slow blinks. (Voice: Power ON)
  2. Double click PAIR button to set the TSA2600 into Pairing mode. Blue LED fast blink. (Voice: Pairing)
  3. Now, Your smartphone will be able to find a new Bluetooth device whose name is "TSA2600". Connect it. (Voice: Pairing successful)
  4. You can play the music now. If you only use one amplifier board. You don't need do the following steps.
  5. Click TX button, Set the module to transmitter mode, Red LED ON.(Voice: Broadcast mode)

Slave board:

  1. Power up another TSA2600. Blue LED slow blink.
  2. Make sure that master board already works correctly and in transmitter mode. Click RX button to set slave board into receiver mode. It will automatically search the master board. Green LED ON (Voice: Broadcast audio enabled)
  3. Double click the RX button on the Slave board, double click the TX button on the Master board. The master board will automatically search (30s) slave board. Both master and slave board will be connected. (Voice: Pairing successful)
  4. The slave board can play music now.
  5. If there is a new board to work as slave board. Just click RX on new board into receiver mode then Double click RX, and Double click TX on Master module.
  6. If a slave board wants to quit. Click TX button on that module.



Note: If you don't hear the voice prompt when clicking TX, please click the RX to switch the mode and then click TX again.



Specification:

Specifications typical @ +25℃, Powered by 36VDC, unless otherwise noted. Specifications subject to change without notice.


Parameter

Condition

Min

Typ

Max

Supply Voltage (VDC)   14 - 36
Input Impedance (Kohm)   - 69 -
Undervoltage protection
threshold (VDC)
      8
Output Power (W) THD = 10% - 160 -
THD = 1% - 125 -
Efficiency (%)   - 85 -
THD (%) Po = 1 W - 0.05 -
Gain (dB)

GAIN < 0.25*VDD

- 23.6 -
0.25*VDD < GAIN <
0.5*VDD
- 29.6 -
0.5*VDD < GAIN <
0.75*VDD
- 33.1 -

GAIN > 0.75*VDD

- 35.6 -
Minimum Load (ohm)   - 4 -
Operating Temperature (℃)   0 20 50





Features:

  • Size: 120*80*20mm
  • Multipoint connection
  • Bluetooth 5.1
  • Up to 100 boards can be linked together.
  • Qualcomm cVc audio technology
  • Qualcomm TrueWireless Technology
  • Stereo receive
  • Effective transmission distance: 10-15m
  • Compatible with all Bluetooth devices that support media audio, including iPhone
