2 x 100W SPDIF Coaxial+DSP Audio Amplifier Board - TSA8802C
2 x 100W SPDIF Coaxial+DSP Audio Amplifier Board - TSA8802C
Couldn't load pickup availability

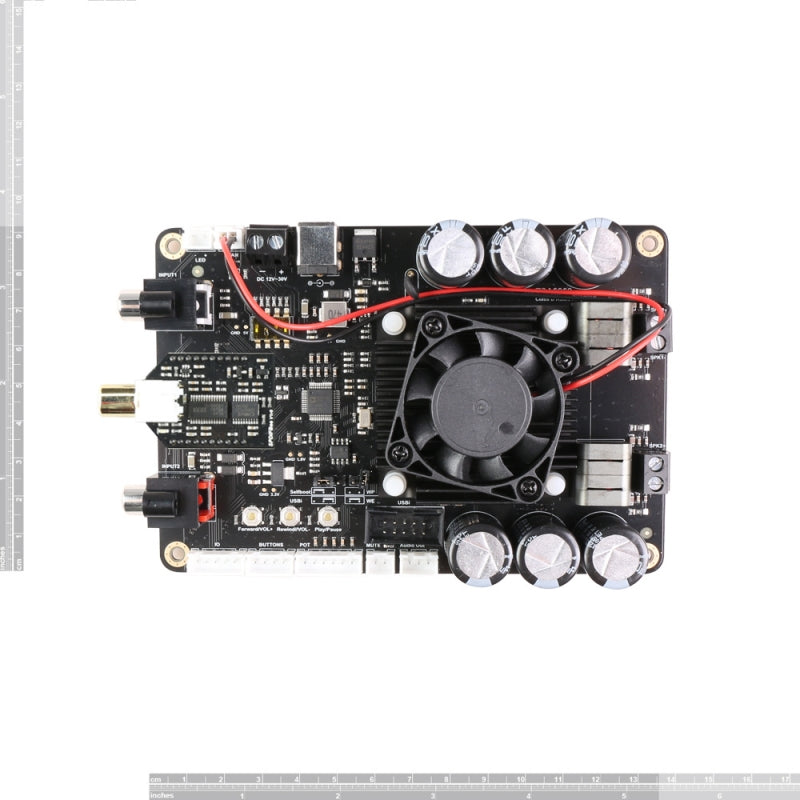

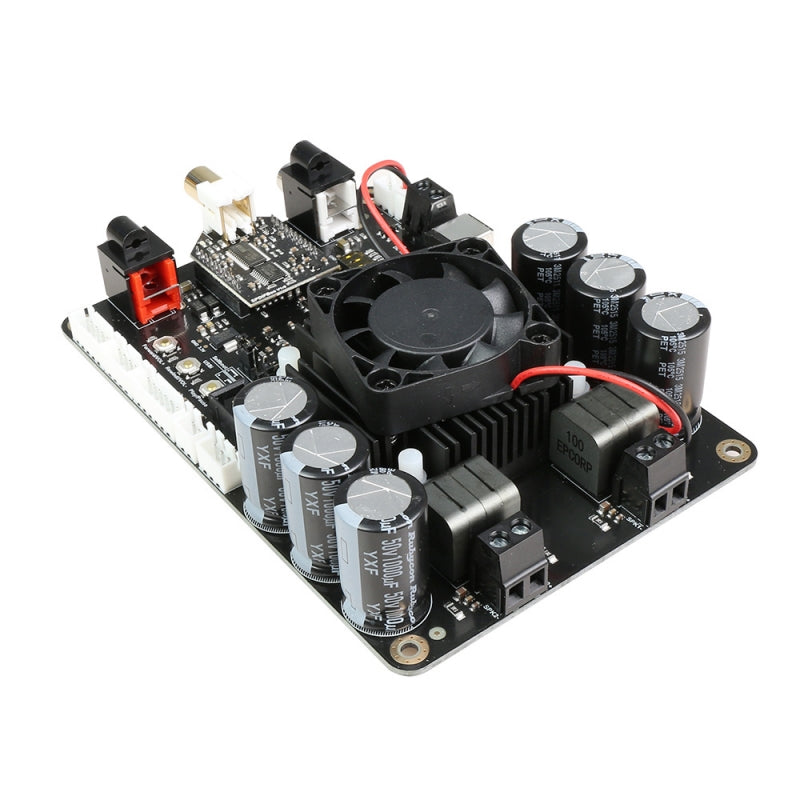

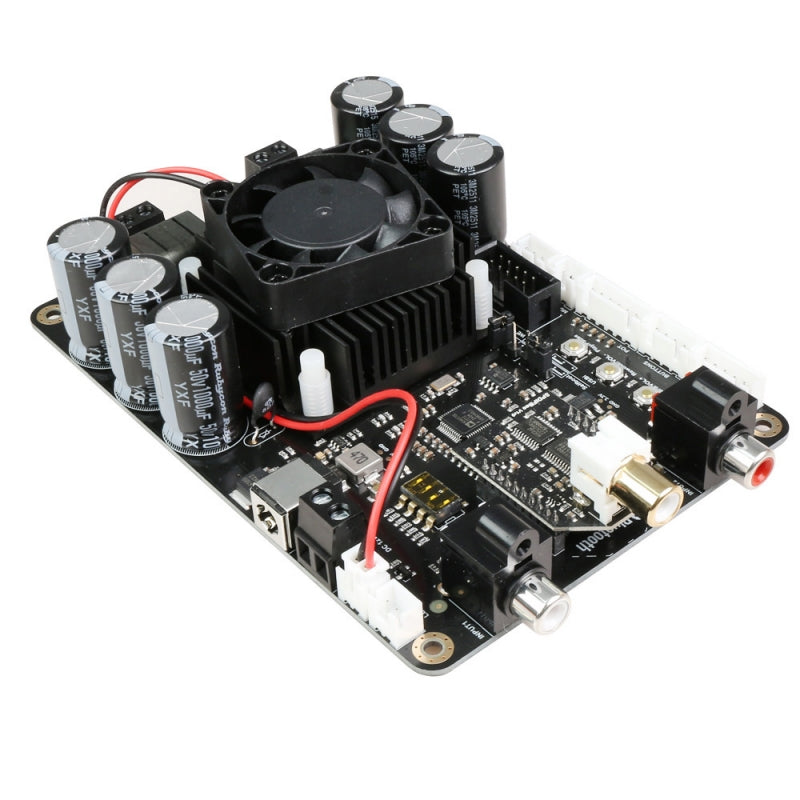

TSA8802C 2x100W 2 channels SPDIF+DSP digital amplifier board with a SPDIFBee receiver module. SPDIFBee convert the SPDIF signal to I2S signal and output to the ADAU1701 DSP chip. TSA8802C is a very flexible DSP/DAC/Amplifier combination board. It has perfect class-D structure (Based on TPA3221) and 2 channels have 100W power output. All the channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC12V-30V power supply. It can be used to drive any 3Ω,4Ω or 8Ω passive speakers.
It's a 2 channels amplifier board. It has a coaxial input connector on the board which can accept the digital audio source of different sampling rates , from 16bit 44.1KHz to 24bit 96KHz.
The main DSP chip on this amplifier board is ADAU1701. It has a default DSP program loaded. Customers can adjust the gain, bass, midrange and treble in the DSP program. It also has a debug port for Sigima Studio, and users can program this module with our USBi programmer to get more functions that include equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, etc.
External Buttons port:
Not support this function on TSA8802C.
Volume control POT port:
There is an Ext POT port on the board. You can connect external POTs (5K~20K) to control the Main volume,treble,middle,Bass. You need update the DSP program first. DSP program (with external POTs). This is our POT kit
- ADC0- Main volume.
- ADC1- Bass volume.
- ADC2- Middle volume.
- ADC3- treble volume.
DSP programming port:
User can load a new DSP program by using the USBi JTAG Sigma DSP programmer
The default DSP program can auto select the Line in /SPDIF audio and output to the amplifier chips. SPDIF audio signal has higher priority.
Specification:
Specifications typical @ +25℃, Powered by 24V DC, unless otherwise noted. Specifications subject to change without notice.
| Parameter | Condition | Min | Typ | Max |
|
Supply Voltage (VDC) |
- | 10 | 24 | 30 |
| Power output per channel | RL= 3Ω, 10% THD+N | 112W | ||
| RL= 4Ω, 10% THD+N | 105W | |||
| RL= 3Ω, 1% THD+N | 100W | |||
| RL= 4Ω, 10% THD+N | 88W | |||
| 200W channel: RL= 2Ω, 1% THD+N | 208W | |||
| THD+N | 1W | 0.02% | ||
| SNR | A-weighted,Gain= 18 dB | 108dB | ||
| DNR | A-weighted,Gain= 18 dB | 109dB | ||
|
Minimum Load Impedance |
3Ω |
4Ω |
||
| Gain | 18dB | 24dB | 34dB | |
| Efficiency | 100W @ 4Ohm | 90% | ||
|
Input Impedance |
18dB | 48KΩ | ||
| 24dB | 24KΩ | |||
| 30dB | 12KΩ | |||
| 34dB | 7.7KΩ |
Features:
- Size: 13.5cm x 9.2cm x 3.5cm
- SPDIF Supported sampling rate:
- 16bit, 44.1KHz, 48KHz, 88.2KHz, 96KHz
- 24bit, 44.1KHz, 48KHz, 88.2KHz, 96KHz
- I2S Sampling Rate: 48KHz, 16bit
- aptX, aptX Low Latency, SBC and AAC
- ADAU DSP integrated
- Working voltage: DC12V-30V
- Smart cooling system
- Over/under voltage protection
- Over current protection
- Over temperature protection
Applications:
- Personal computer
- Background music system
- Musical instrument amplifiers
- Home DIY
- Car audio
Documents:
- Datasheet
- ADI SigmaStudio software
- How to write DSP program to DSP board
- Default DSP program
- DSP program (with external POTs)
