2 x 100W + 200W 3 Channels Audio Amplifier Board - TSA7600

2 x 100W + 200W 3 Channels Audio Amplifier Board - TSA7600

$42.95 USD
$42.95 USD
Sale Sold out
Shipping calculated at checkout.

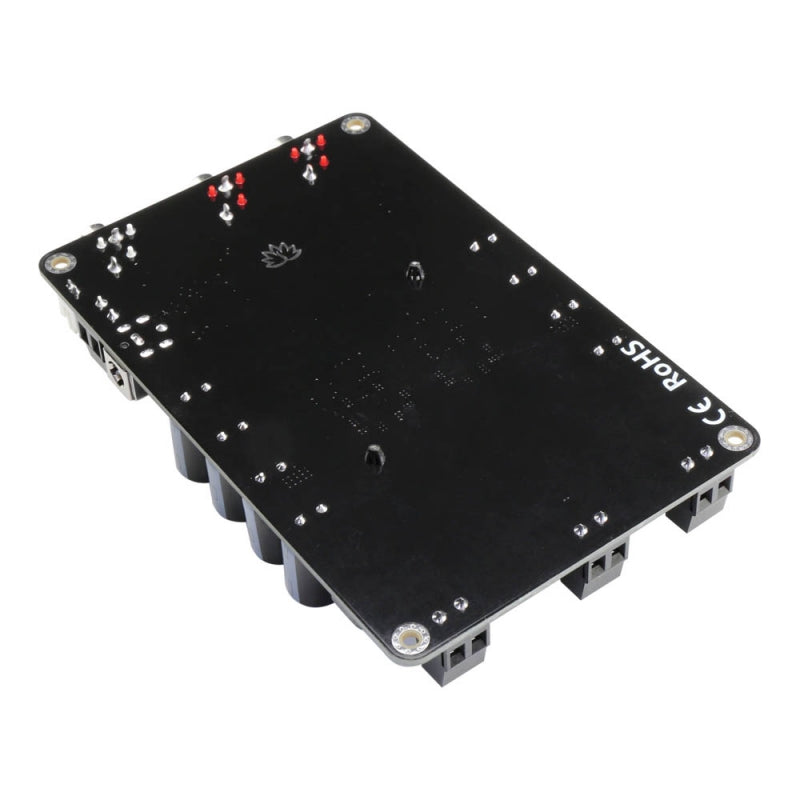

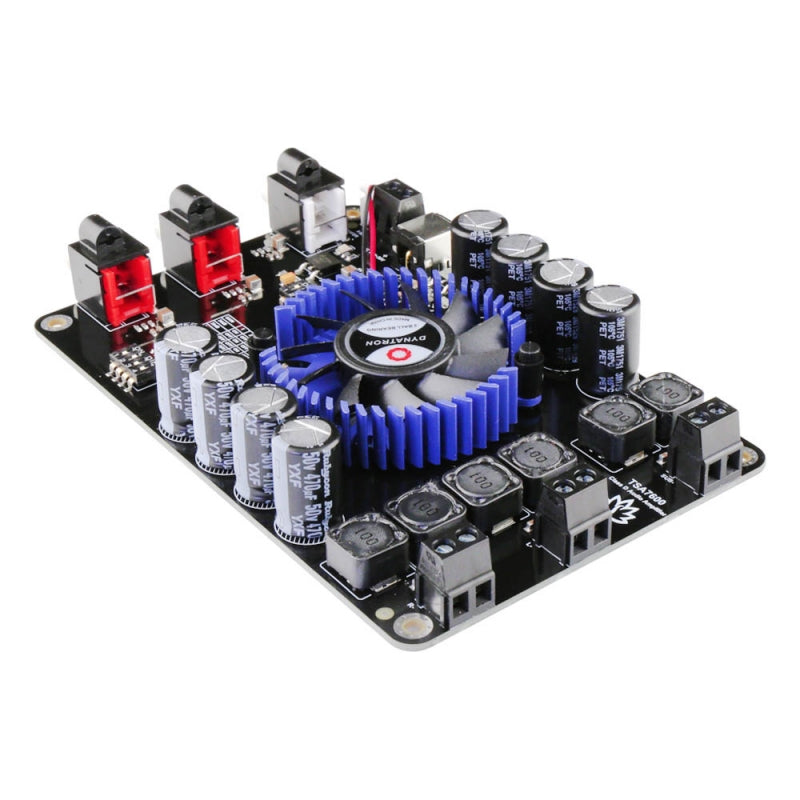

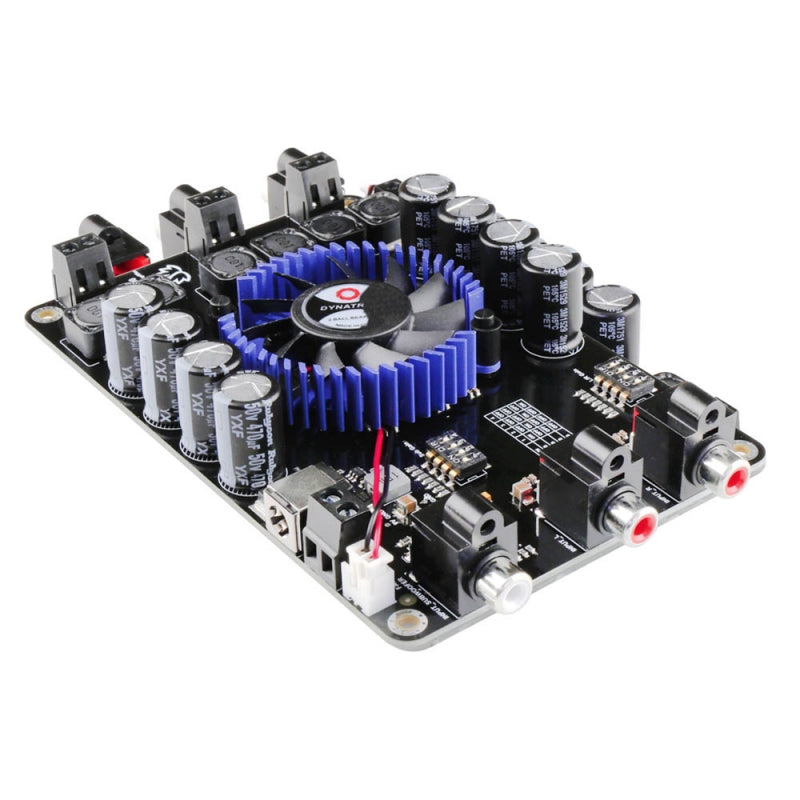

TSA7600 2x100W + 220W audio amplifier board. It has perfect class-D architecture(Based on TPA3221) and 2 channels have 100W power output and another one channel has 200W power output. All channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC12V-30V power supply. It can be used to drive any 4Ω or 8Ω passive speakers.





Specification:

Specifications typical @ +25℃, Powered by 24V DC, unless otherwise noted. Specifications subject to change without notice.

Parameter Condition Min Typ Max

Supply Voltage (VDC)

 - 10 24 26
Power output per channel RL= 3Ω, 10% THD+N   112W
RL= 4Ω, 10% THD+N   105W
RL= 3Ω, 1% THD+N   100W
RL= 4Ω, 10% THD+N   88W
200W channel: RL= 2Ω, 1% THD+N   208W
THD+N 1W   0.02%
SNR A-weighted,Gain= 18 dB   108dB
DNR A-weighted,Gain= 18 dB   109dB

Minimum Load Impedance



3Ω

4Ω


Gain   18dB 24dB 34dB
Efficiency 100W @ 4Ohm   90%

Input Impedance

 18dB   48KΩ
24dB   24KΩ
30dB   12KΩ
34dB   7.7KΩ

Features:

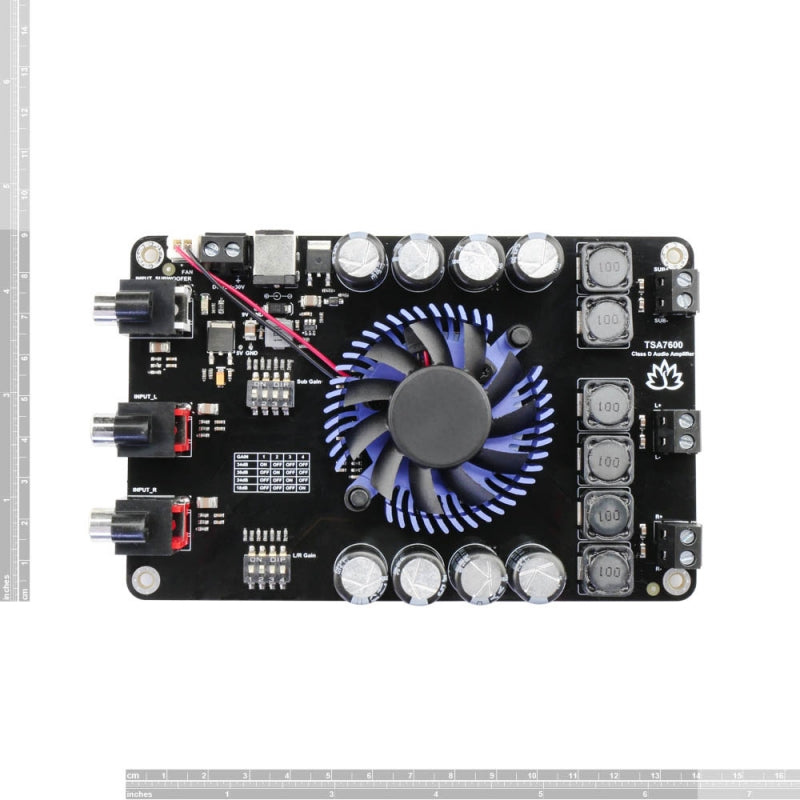

  • Size: 14.8cmx9cmx2.4cm
  • Working voltage: DC12V-30V
  • Weight: 152g
  • Over/under voltage protection
  • Over current protection
  • Over temperature protection



Applications:

  • Personal computer
  • Background music system
  • Musical instrument amplifiers
  • Home DIY
  • Car audio
