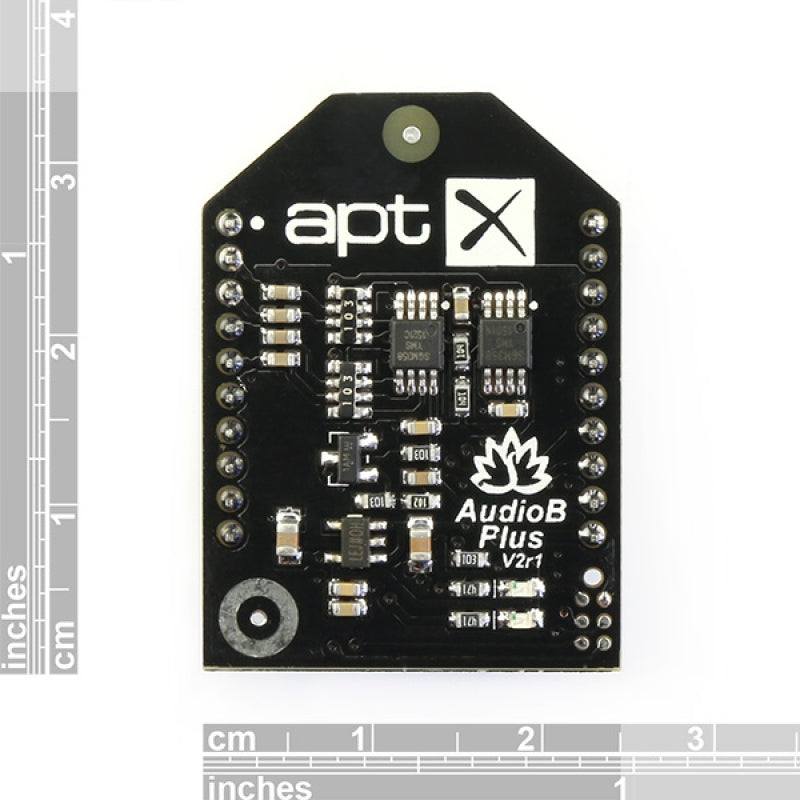

Bluetooth 5.0 APTX Audio Module - TS3008

TS3008 is a high performance, cost effective, low power and compact solution Bluetooth 5.0 modules. The Bluetooth module provides a complete 2.4GHz Bluetooth system based on the Qualcomm QCC3008 chipset which is a single chip radio and baseband IC for Bluetooth 2.4GHz systems. This module is fully qualified single-chip dual mode Bluetooth@v5.0 system. This module already has a PCB antenna on the board.

Features:

                Bluetooth Profiles

• Bluetooth v5.0 specification supported
• Qualcomm Bluetooth Low Energy secure connection
• A2DP v1.3.1
• AVRCP v1.6
• HFP v1.7
• HSP v1.2
• SSP v1.2
• DID v1.3
• HOGP v1.0
• PXP v1.0.1
• FMP v1.0
• BAS v1.0
• QTIL's proximity pairing and QTIL's proximity connection

Music Enhancements

• aptX, aptX Low Latency, SBC and AAC
• TrueWireless Stereo (TWS)
• Configurable Signal Detection to trigger events
• Up to 10 stages of Speaker Parametric EQ
• Up to 6 banks of 5 stages of User Parametric EQ for music playback (user, rock, pop, classical, jazz, etc)
• MeloD Expansion 3D stereo widening and phase shifting effect
• Configurable Signal Detection to trigger events
• Compander to compress or expand the dynamic range of the audio
• Post Mastering to improve DAC fidelity
• Dual I²S outputs with crossover

Additional Functionality

• Support for multi-language programmable audio prompts
• Multipoint support for A2DP connection to 2 A2DP sources for music playback
• Talk-time extension
• Slim module with 28.5mm x 13mm x 2.0mm

Applications:

• Stereo Headsets
• Wired Stereo headsets and headphones
• Portable Bluetooth Stereo speakers

Documents:

• Datasheet
• Reference design
• Eagle Library
• QCC3008 datasheet
• ADK software (module configuration)
