AudioB Pro Bluetooth Audio Receiver Module(Apt-X)

If you want to build a simple Bluetooth amplifier board. AudioB Pro Bluetooth audio receiver is a good choice for your project. This is a Bluetooth 5.0 stereo recevier. It supports Apt-X, and it is based on QCC3008. We breakout pins to 2x10 2mm space male pins. You can integrate it to your project easily.

We use this module on our 2.1 channel audio amplifier board.

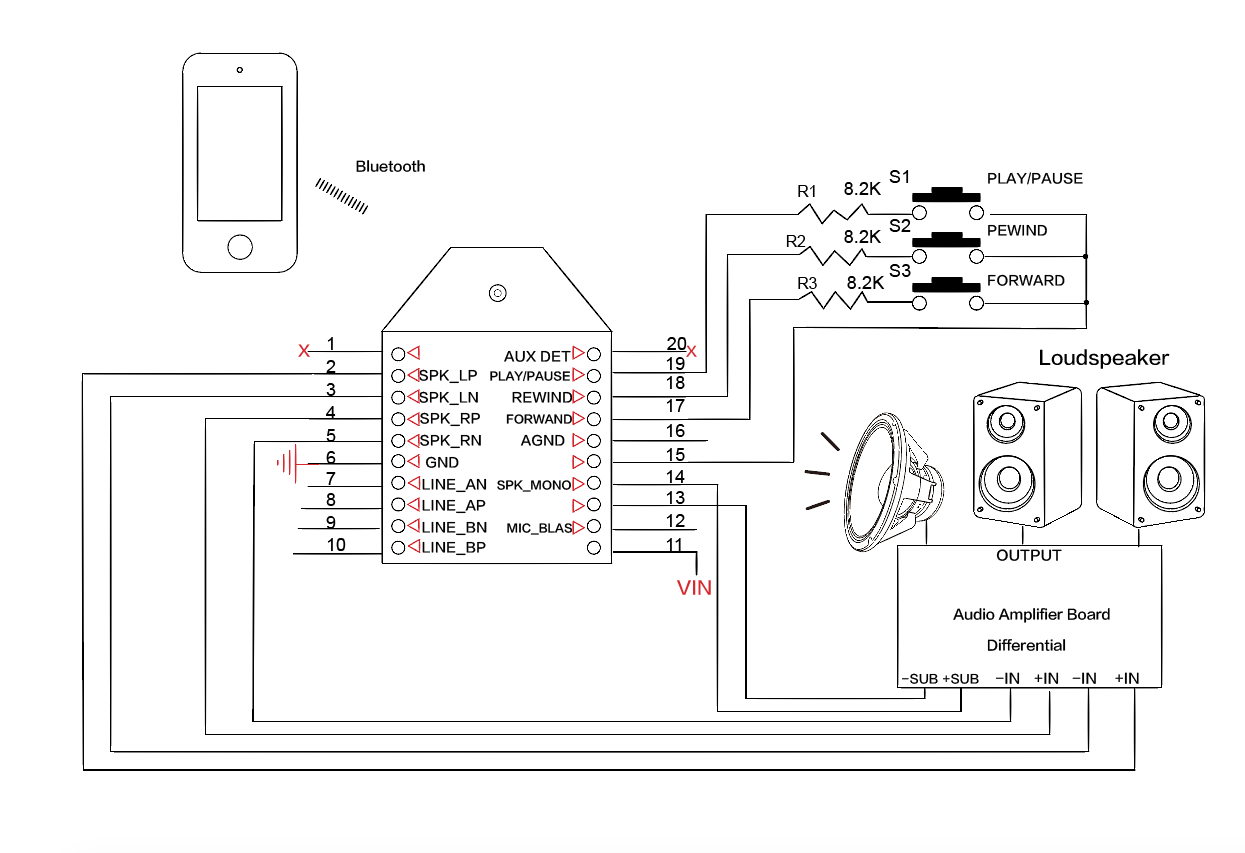

Differential signal output

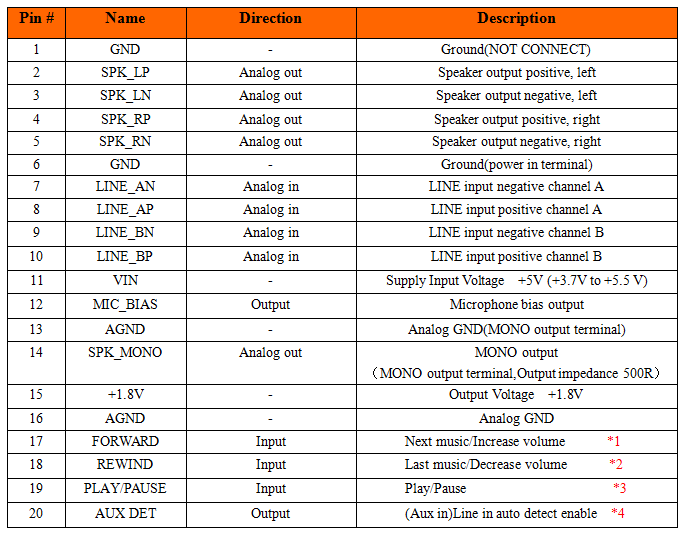

Note:

1. Quick press S2 to switch to the previous song, long press to reduce the volume
2. Quick press S3 to switch to the next song, long press to increase the volume
3. Press S1 to play or pause
4. Aux DET:  Leave open: Aux in/Line in disabled, Connect to GND: Aux in/Line in enabled

Features:

• Bluetooth 5.0
• Apt-X supported
• Low power consumption: 5mA@5V
• HFP V1.6
• HSP V1.2
• A2DP V1.2
• AVRCP v1.4

Documents:

• How to change the BT name
• Bluesuite2.5.0
• Dimensions
