How to pair a new remote with TSA1200

How to pair a new remote with TSA1200

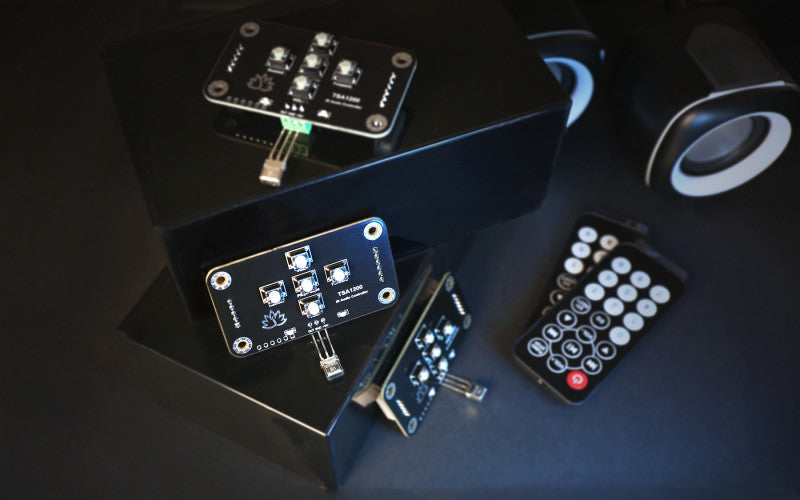

TSA1200 has a paired remote control, but if the remote control is broken or you want to use your own remote control, this tutorial will teach you how to pair it.

Note: The remote control that you use must meet the carrier frequency of 38KHz and support the NEC standard.

Hardware and Software required:

  • audio amplifier board
  • connection cable
  • TSA1200 kit

How to pair remotes:

Step 1:
Connect TSA1200 to the BVC port of the audio amplifier board. Power up the audio amplifier board.

Step 2: VOL+ button pairing

  1. Press and hold the VOL+ button of TSA1200.
  2. After yellow led of TSA1200 flashes, press a button (named as button A) on the remote control with the other hand for 2 seconds.
  3. Release VOL+ button when TSA1200 yellow led flashes.





Step 3: Rewind button pairing

  1. Press and hold the Rewind button of TSA1200.
  2. After yellow led of TSA1200 flashes, press the button (named as button B) on the remote control with the other hand for 2 seconds.
  3. Release Rewind button when the TSA1200 yellow led flashes.



 Step 4: Play/Pause button pairing

  1. Press and hold the Play/Pause button of TSA1200.
  2. After yellow led of TSA1200 flashes, press a button (named as button C) on the remote control with the other hand for 2 seconds.
  3. Release Play/Pause button when TSA1200 yellow led flashes.

Step 5: Forward button pairing

  1. Press and hold the Forward button of TSA1200.
  2. After yellow led of TSA1200 flashes, press a button (named as button D) on the remote control with the other hand for 2 seconds.
  3. Release Forward button when TSA1200 yellow led flashes.



Step 6: VOL- button pairing

  1. Press and hold the VOL- button of TSA1200.
  2. After yellow led of TSA1200 flashes, press a button (named as button E) on the remote control with the other hand for 2 seconds.
  3. Release the VOL- button when TSA1200 yellow led flashes.

Step 7:

Press button A/B/C/D/E on the remote control. If yellow led on the TSA1200 is always on and red led is blinking, That means button pairing is successful. If yellow led flashes,the pairing has failed. You need to repeat the corresponding steps.

Note:You can choose any 5 buttons on the remote control to correspond to the 5 buttons on TSA1200.After the new remote control is successfully paired, the old remote control cannot control the TSA1200 anymore. You need to re-pair it if you want to use it again.
